¶ Assembly

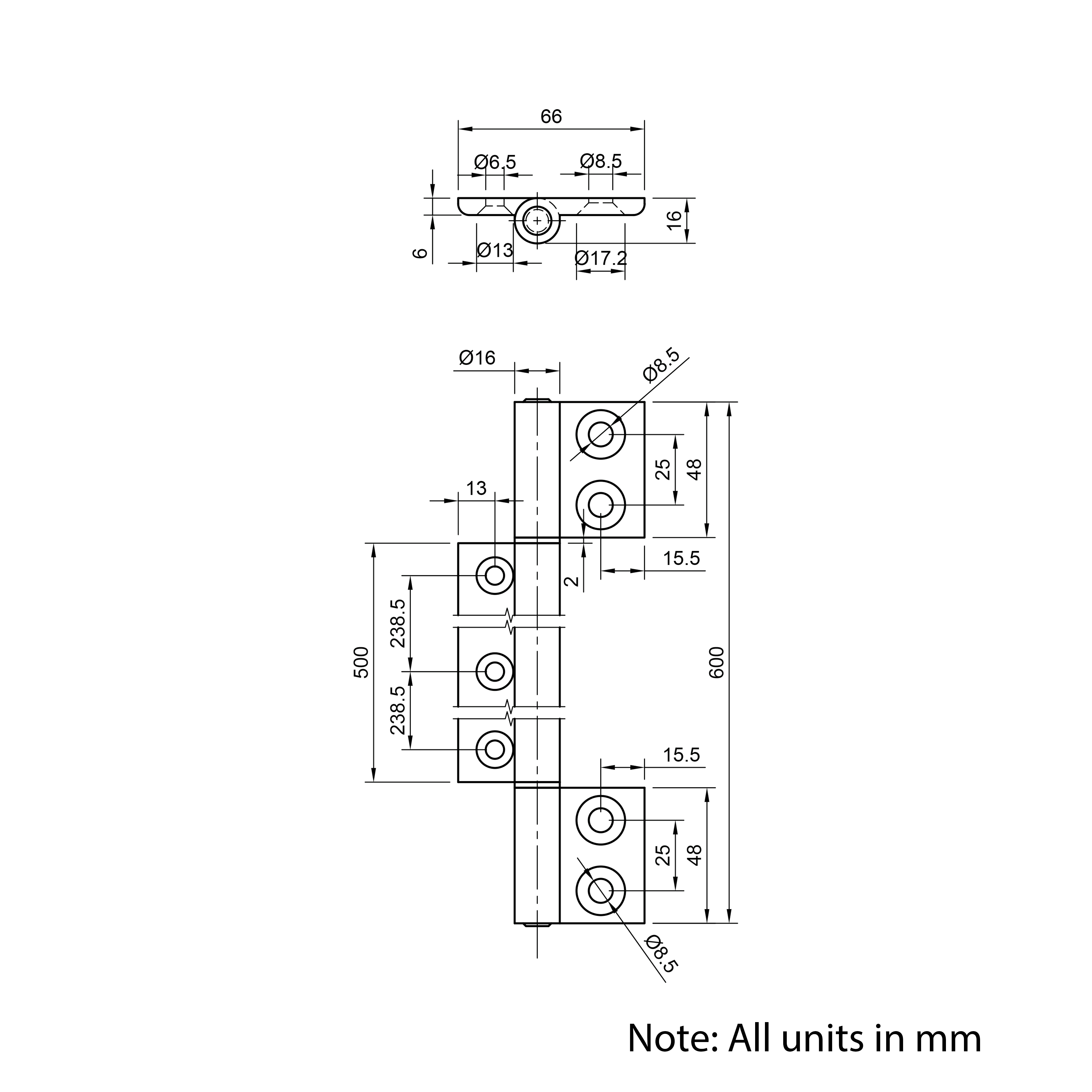

¶ CAD Files
¶ Specifications
| Attribute | Value |
|---|---|
| SKU | LH-3045 |
| Brand | Ooznest |
| Stock Type | New |
| Weight (g) | 525.00 |
| Profile Series | 30 Series, 45 Series |
| Material | Aluminium |
| Surface Finish | Anodised |
| Colour | Silver |
| Number Of Fixing Points | 7 |
| Fixings Spacing (mm) | 25 |
| Hinge Configuration | 30/45 |
| Degree Of Opening (°) | 180 |
¶ What's Included
| Qty | Name |
|---|---|
| 1x | 30/45 Series Long Hinge |
¶ Related Products
| Product Range | Information | Products |
|---|---|---|
| Fasteners | Add the FS-040 Fastener Set to get the required fasteners for using a hinge side with 30 Series T-Slot Aluminium Extrusions. Add the FS-042 Fastener Set to get the required fasteners for using a hinge side with 45 Series T-Slot Aluminium Extrusions. |
¶ Additional Notes
There are no additional notes.
