¶ Assembly

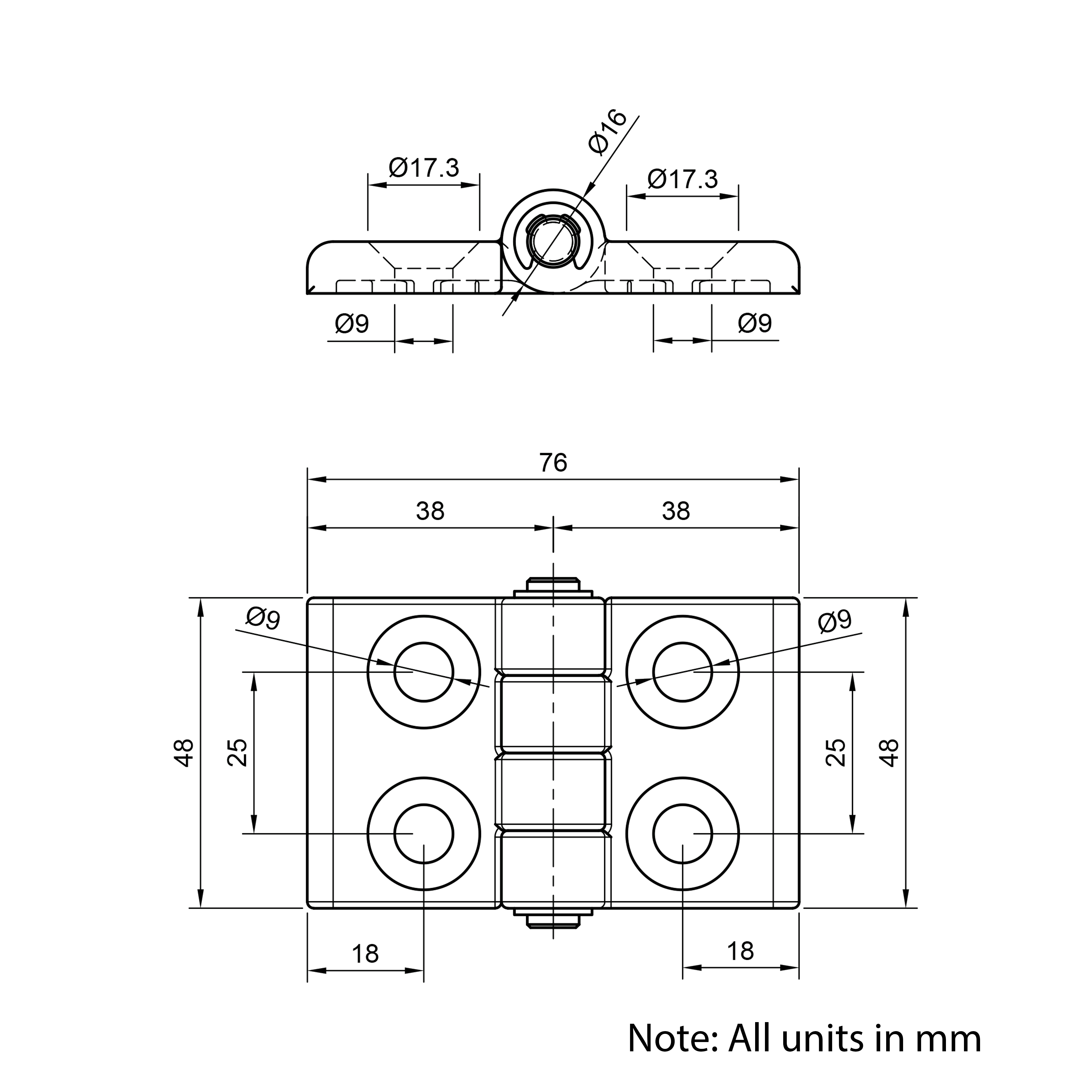

¶ CAD Files
¶ Specifications
| Attribute | Value |
|---|---|
| SKU | PH-40 |
| Brand | Ooznest |
| Stock Type | New |
| Weight (g) | 45.00 |
| Profile Series | 40 Series |
| Material | PA6 (Nylon) |
| Colour | Black |
| Number Of Fixing Points | 4 |
| Fixings Spacing (mm) | 25 |
| Hinge Configuration | 40/40 |
| Degree Of Opening (°) | 180 |
¶ What's Included
| Qty | Name |
|---|---|
| 1x | 40/40 Series Plastic Hinge |
¶ Related Products
| Product Range | Information | Products |
|---|---|---|
| Fasteners | Add the FS-048 Fastener Set to get the required fasteners for using the hinge with 40 Series T-Slot Aluminium Extrusions. |
¶ Additional Notes
There are no additional notes.
