Order Online: www.ooznest.co.uk
¶ Related Resources
There are no related resources.
¶ Assembly

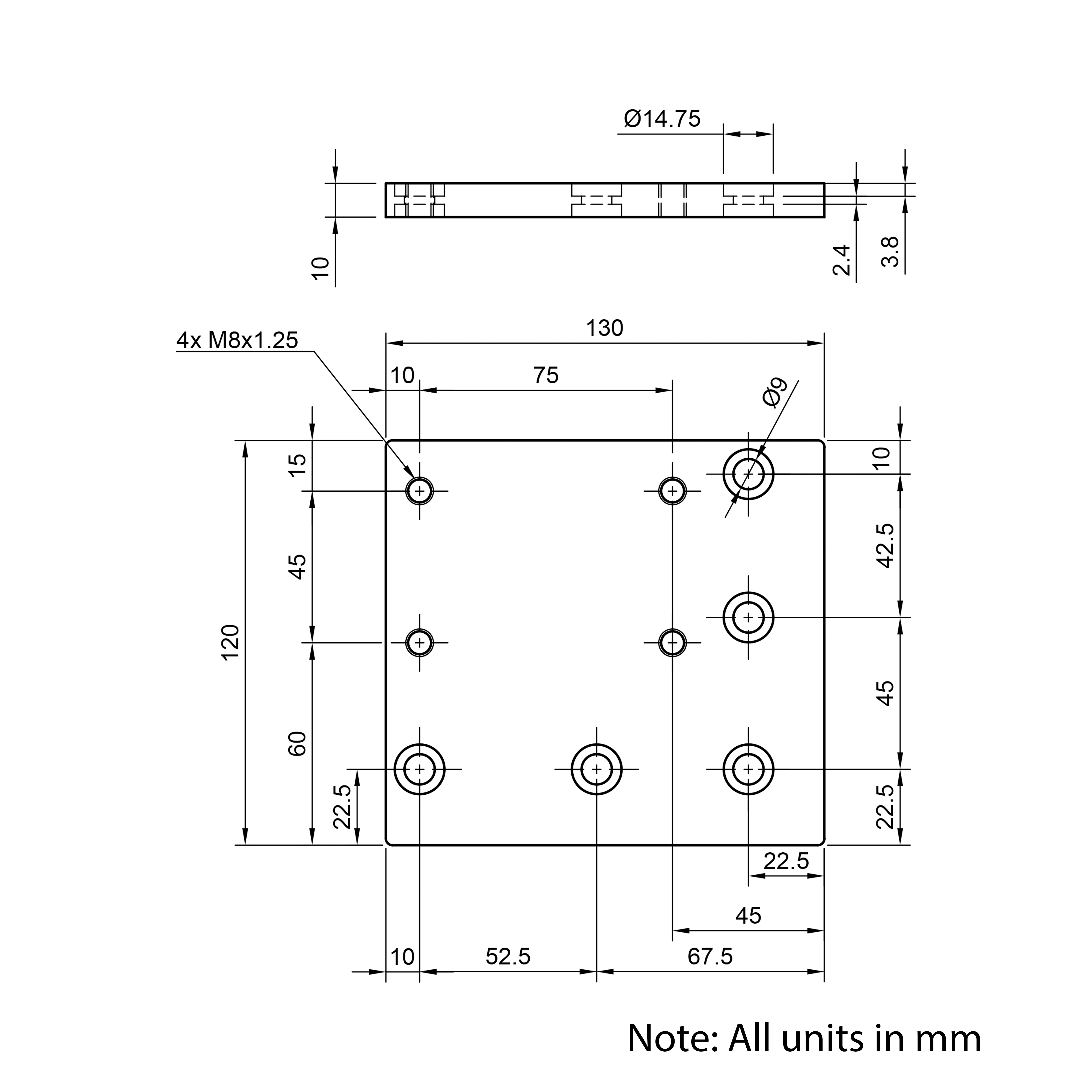

¶ CAD Files
¶ Specifications
| Attribute | Value |
|---|---|
| SKU | CP-C-45 |
| Brand | Ooznest |
| Stock Type | New |
| Weight (g) | 1156.03 |
| Profile Series | 45 Series |
| Material | Mild Steel |
| Surface Finish | Zinc Plated |
| Colour | Natural |
| Thread | M8 |
| Thread Pitch (mm) | 1.25 |
| Number Of Fixing Points | 5 |
| Castor Mounting Type | Plate |
¶ What's Included
| Qty | Name |
|---|---|
| 1x | Castor Plate - Corner - 45 Series - Inventory (Unbagged) |
¶ Related Products
| Product Range | Information | Products |
|---|---|---|
| Fasteners | Add the FS-011 Fastener Set to get the required fasteners to attach a Castor to the Caster Plate. Add 1x FS-012 & 4x FS-014 Fastener Sets to get the required fasteners to attach a vertical 45x45 and horizontal 45 Series T-Slot Aluminium Extrusions to the Caster Plate. Add 2x FS-012 & 3x FS-014 Fastener Sets to get the required fasteners to attach a vertical 45x90 and horizontal 45 Series T-Slot Aluminium Extrusions to the Caster Plate. Add 3x FS-012 & 2x FS-014 Fastener Sets to get the required fasteners to attach a vertical 90x90 and horizontal 45 Series T-Slot Aluminium Extrusions to the Caster Plate. | |
| Swivel Castors | Add swivel castors to attach to the castor plate. | |
| Braked Swivel Castors | Add braked swivel castors to attach to the castor plate. | |
| Fixed Castors | Add fixed castors to attach to the castor plate. |
¶ Additional Notes
There are no additional notes.
