¶ Assembly

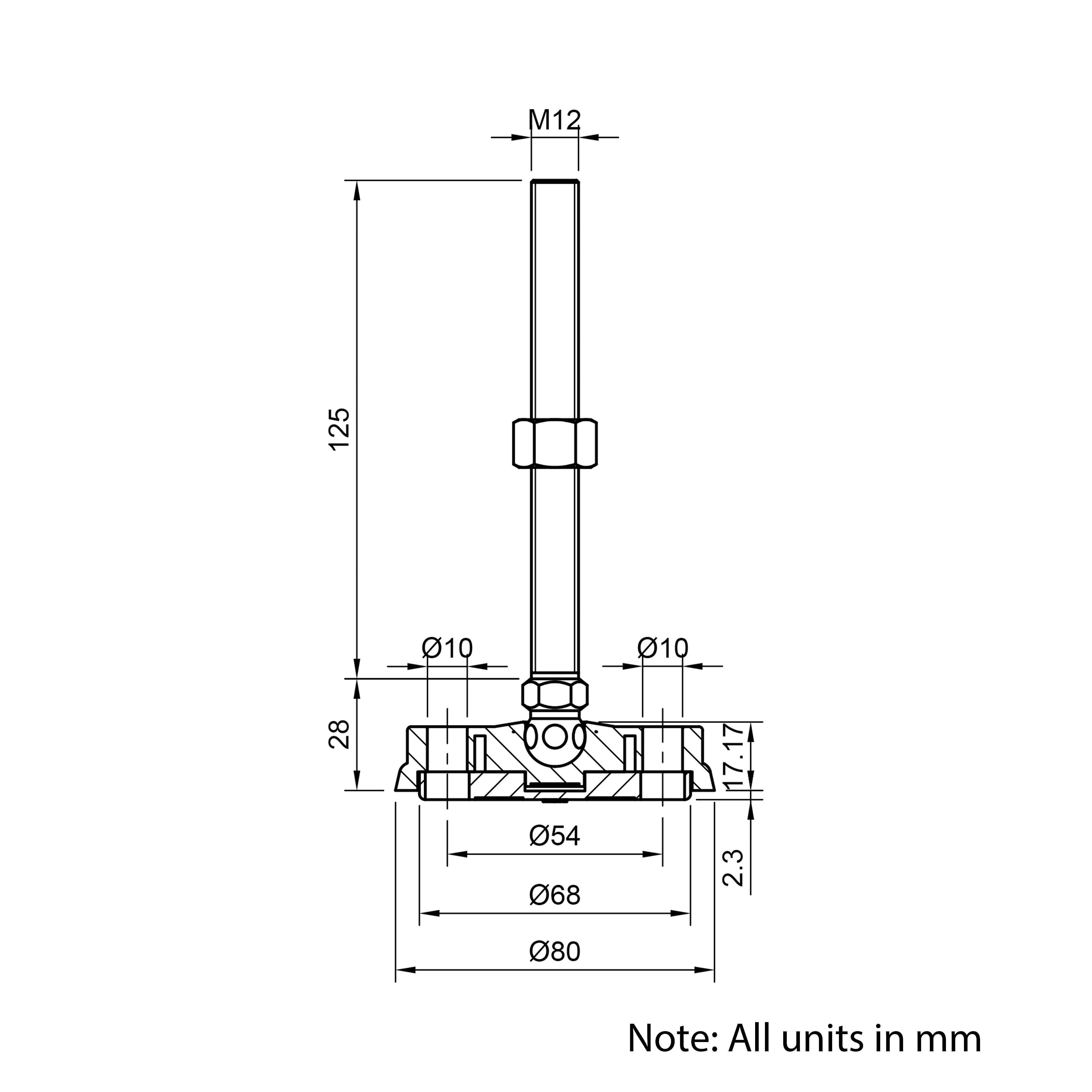

¶ CAD Files
¶ Specifications
| Attribute | Value |
|---|---|
| SKU | AALF-N80-M12-125 |
| Brand | Ooznest |
| Stock Type | New |
| Weight (g) | 166.43 |
| Material | Steel |
| Surface Finish | Zinc Plated |
| Thread | M12 |
| Thread Pitch (mm) | 1.75 |
| Thread Length (mm) | 125 |
| Outside Diameter (mm) | 80 |
| Articulating | Yes |
| Anti-slip | Yes |
| Load Rating (Kg) | 770 |
| Stud Length (mm) | 125 |
| Base Material | Nylon |
| Base Version | Nylon - 80mm Diameter |
| Stud Version | M12x125mm |
¶ What's Included
| Qty | Name |
|---|---|
| 1x | M12x125mm Nylon 80mm Articulating Anti-slip Levelling Foot |
¶ Additional Notes
There are no additional notes.
