Order Online: www.ooznest.co.uk
¶ Related Resources
There are no related resources.
¶ Assembly

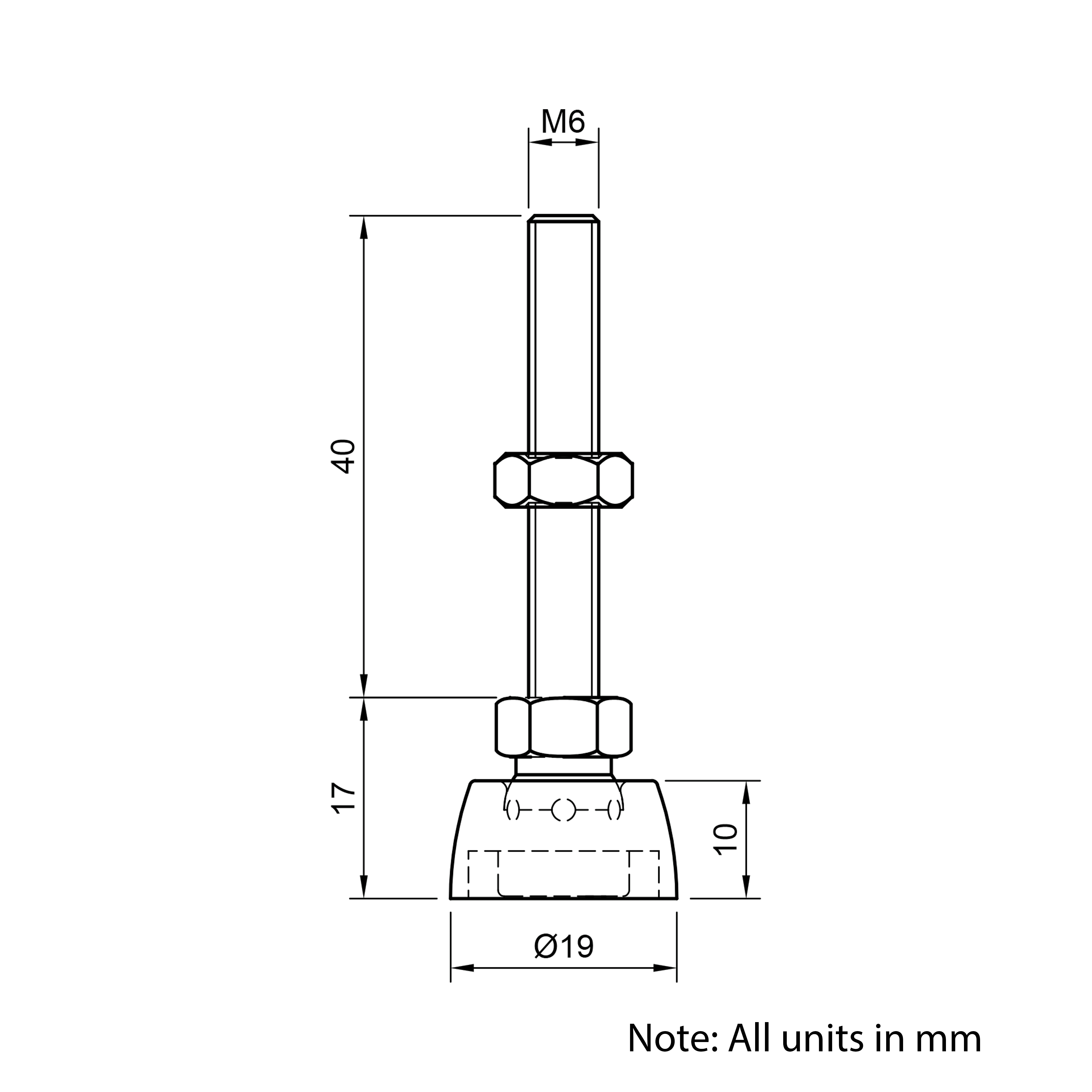

¶ CAD Files
¶ Specifications
| Attribute | Value |
|---|---|
| SKU | ALF-N19-M6-40 |
| Brand | Ooznest |
| Stock Type | New |
| Weight (g) | 25.00 |
| Material | Steel |
| Surface Finish | Zinc Plated |
| Thread | M6 |
| Thread Pitch (mm) | 1 |
| Thread Length (mm) | 40 |
| Outside Diameter (mm) | 19 |
| Articulating | Yes |
| Anti-slip | No |
| Load Rating (Kg) | 100 |
| Stud Length (mm) | 40 |
| Base Material | Nylon |
¶ What's Included
| Qty | Name |
|---|---|
| 1x | M6x40mm Nylon 19mm Articulating Levelling Foot |
¶ Additional Notes
There are no additional notes.
