¶ Assembly

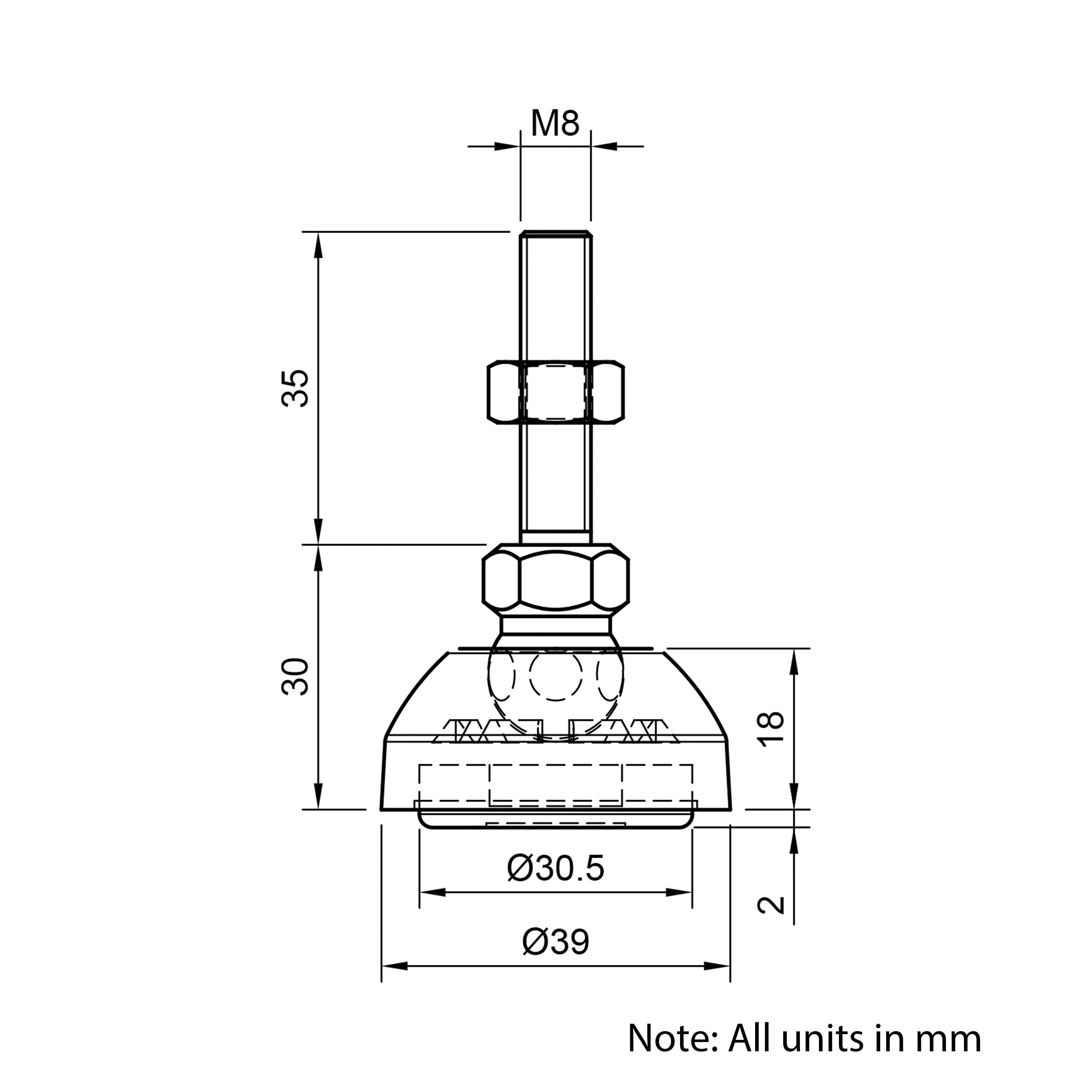

¶ CAD Files
¶ Specifications
| Attribute | Value |
|---|---|
| SKU | AALF-N39-M8-35 |
| Brand | Ooznest |
| Stock Type | New |
| Weight (g) | 57.21 |
| Material | Steel |
| Surface Finish | Zinc Plated |
| Thread | M8 |
| Thread Pitch (mm) | 1.25 |
| Thread Length (mm) | 35 |
| Outside Diameter (mm) | 39 |
| Articulating | Yes |
| Anti-slip | Yes |
| Load Rating (Kg) | 350 |
| Stud Length (mm) | 35 |
| Base Material | Nylon |
| Base Version | Nylon - 39mm Diameter |
| Stud Version | M8x35mm |
¶ What's Included
| Qty | Name |
|---|---|
| 1x | M8x35mm Nylon 39mm Articulating Anti-slip Levelling Foot |
¶ Additional Notes
There are no additional notes.
