¶ Related Resources
There are no related resources.
¶ Assembly

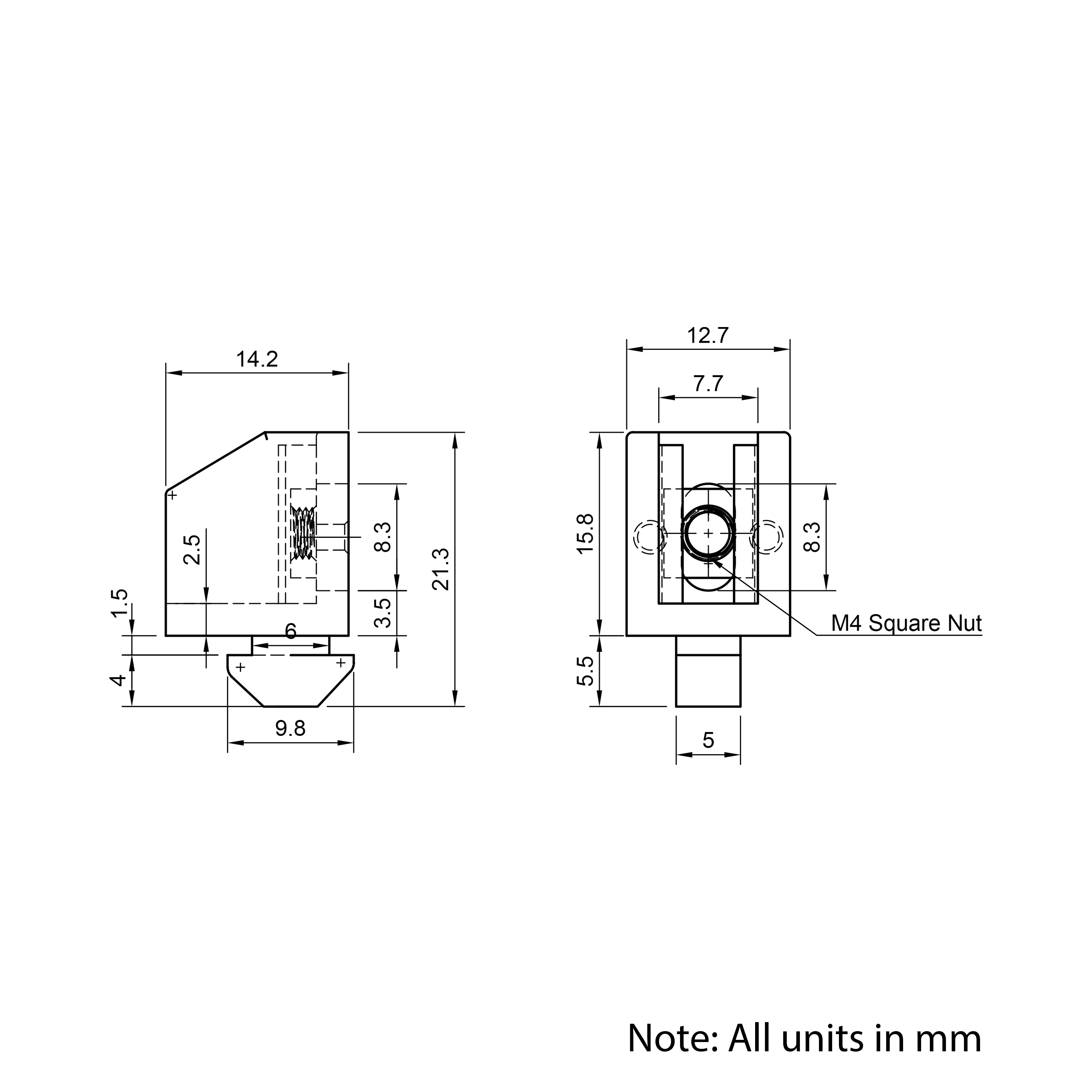

¶ CAD Files
¶ Specifications
| Attribute | Value |
|---|---|
| SKU | PBR-20 |
| Brand | Ooznest |
| Stock Type | New |
| Weight (g) | 2.48 |
| Profile Series | 20 Series |
| Material | Nylon |
| Colour | Black |
| Thread | M4 |
| Thread Pitch (mm) | 0.7 |
| Insertion Type | Face |
| Maximum Panel Thickness (mm) | 5.5 |
¶ What's Included
| Qty | Name |
|---|---|
| 1x | 20 Series Panel Bracket |
¶ Notes
- Includes pre-inserted M4 square nut
¶ Related Products
| Product Range | Information | Products |
|---|---|---|
| Panel Fasteners | Add the FS-026 Fastener Set to get the required fasteners for attaching up to a 5.5mm thick panel to the panel bracket. |
¶ Additional Notes
There are no additional notes.
