¶ Specifications
| Attribute | Value |
|---|---|
| SKU | AEP-TV-2060-S-CTS |
| Brand | Ooznest |
| Stock Type | New |
| Weight (g) | 1.16 |
| Profile Series | 20 Series |

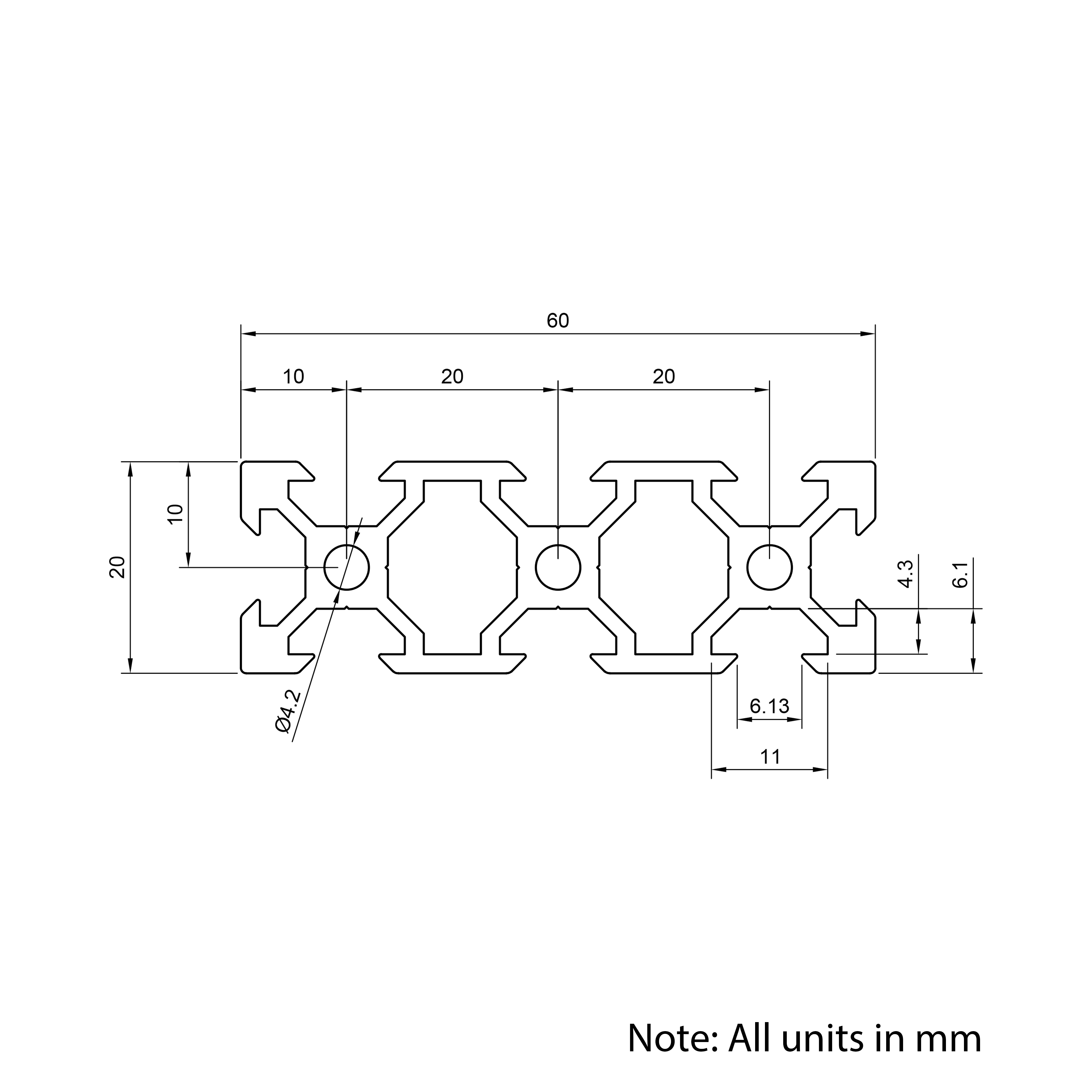

| Profile | 20x60 |
| Material | 6063 T-5 Aluminium |
| Surface Finish | Anodised |
| Colour | Silver |
| Number Of Slots | 8 |
| Slot Width (mm) | 6.13 |
| Slot Depth (mm) | 6.1 |
| Minimum Length (mm) | 40 |
| Maximum Length (mm) | 3000 |
| Length Tolerance (mm) | +/- 0.2 |
| Angle Tolerance (°) | +/- 0.25° |
| End Hole Diameter (mm) | 4.2 |
| Tapping Thread | M5 |
| Tapping Thread Pitch (mm) | 0.8 |
| Tapping Thread Depth (mm) | 10 |
| X Moment Of Inertia - (m4) | 14.92 x10-8 |
| Y Moment Of Inertia - (m4) | 1.774 x10-8 |
| Manufacturing Standard | BS EN 755 |
¶ What's Included
| Qty | Name |
|---|---|
| 1x | Aluminium Extrusion Profile - T/V-Slot - 20 Series - 20x60mm - 1mm - Silver |
¶ Related Products
| Product Range | Information | Products |
|---|---|---|
| One End Thread Reducers | Add M5 thread reducers for one end of the aluminium extrusion. This requires the Tapping Customisation service to be selected. | |
| Both Ends Thread Reducers | Add M5 thread reducers for both ends of the aluminium extrusion. This requires the Tapping Customisation service to be selected. |
¶ Additional Notes
There are no additional notes.
