| Attribute | Value |
|---|
| SKU | AEP-T-3030-S-CTS |
| Brand | Ooznest |
| Stock Type | New |
| Weight (g) | 0.85 |

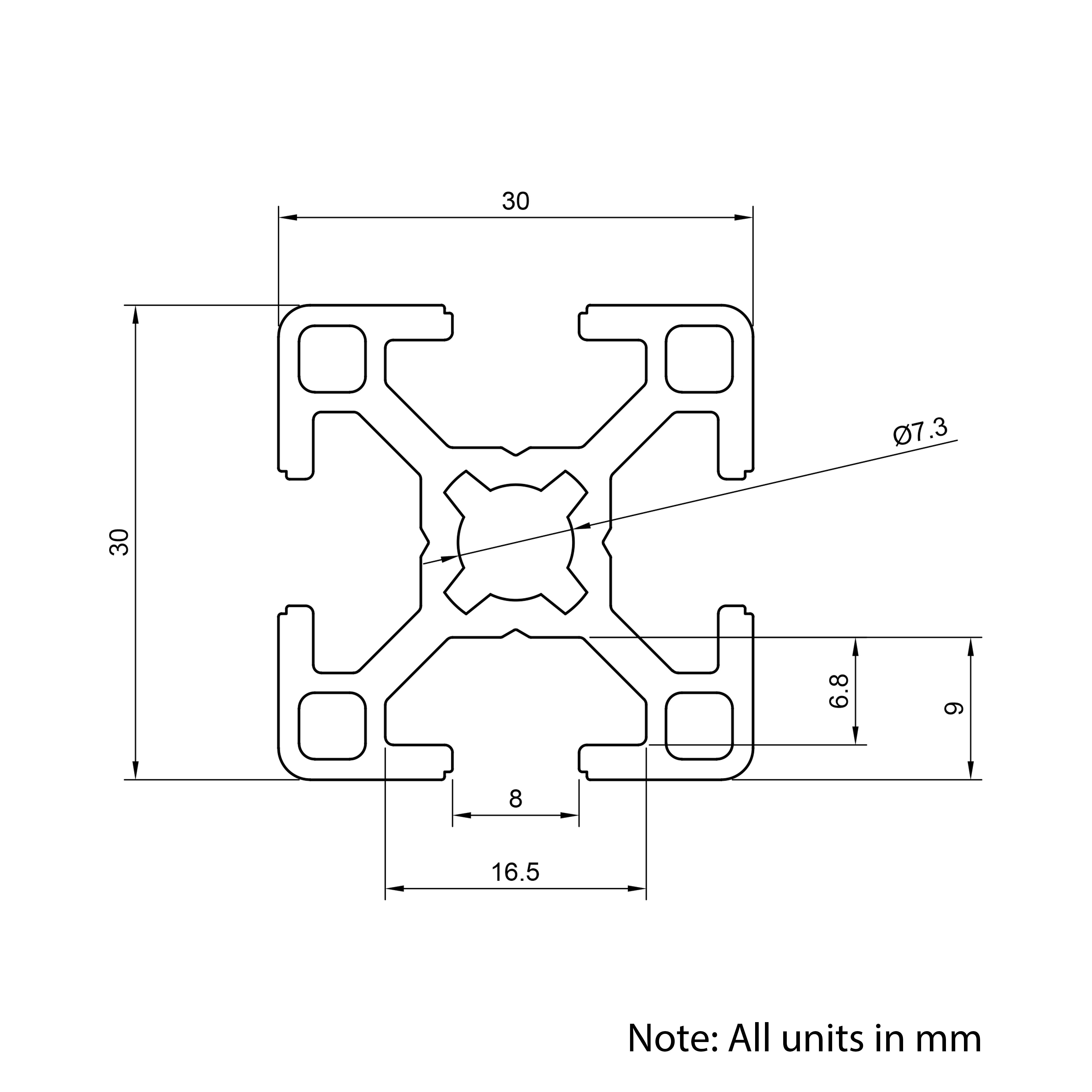

| Profile Series | 30 Series |
| Profile | 30x30 |
| Material | 6063 T-6 Aluminium |
| Surface Finish | Anodised |
| Colour | Silver |
| Number Of Slots | 4 |
| Slot Width (mm) | 8 |
| Slot Depth (mm) | 9 |
| Minimum Length (mm) | 40 |
| Maximum Length (mm) | 3000 |
| Length Tolerance (mm) | +/- 0.2 |
| Angle Tolerance (°) | +/- 0.25° |
| End Hole Diameter (mm) | 7.3 |
| Tapping Thread | M8 |
| Tapping Thread Pitch (mm) | 1.25 |
| Tapping Thread Depth (mm) | 16 |
| X Moment Of Inertia - (m4) | 2.77x10-8 |
| Y Moment Of Inertia - (m4) | 2.77x10-8 |
| Manufacturing Standard | BS EN 755 |
| Qty | Name |
|---|
| 1x | Aluminium Extrusion Profile - T-Slot - 30 Series - 30x30mm - 1mm - Silver |
| Product Range | Information | Products |
|---|
| One End Thread Reducers | Add M8 thread reducers for one end of the aluminium extrusion. This requires the Tapping Customisation service to be selected. | |
| Both Ends Thread Reducers | Add M8 thread reducers for both ends of the aluminium extrusion. This requires the Tapping Customisation service to be selected. | |
There are no additional notes.
