| Attribute | Value |
|---|
| SKU | AEP-T-8080-S-CTS |
| Brand | Ooznest |
| Stock Type | New |
| Weight (g) | 4.98 |
| Profile Series | 40 Series |

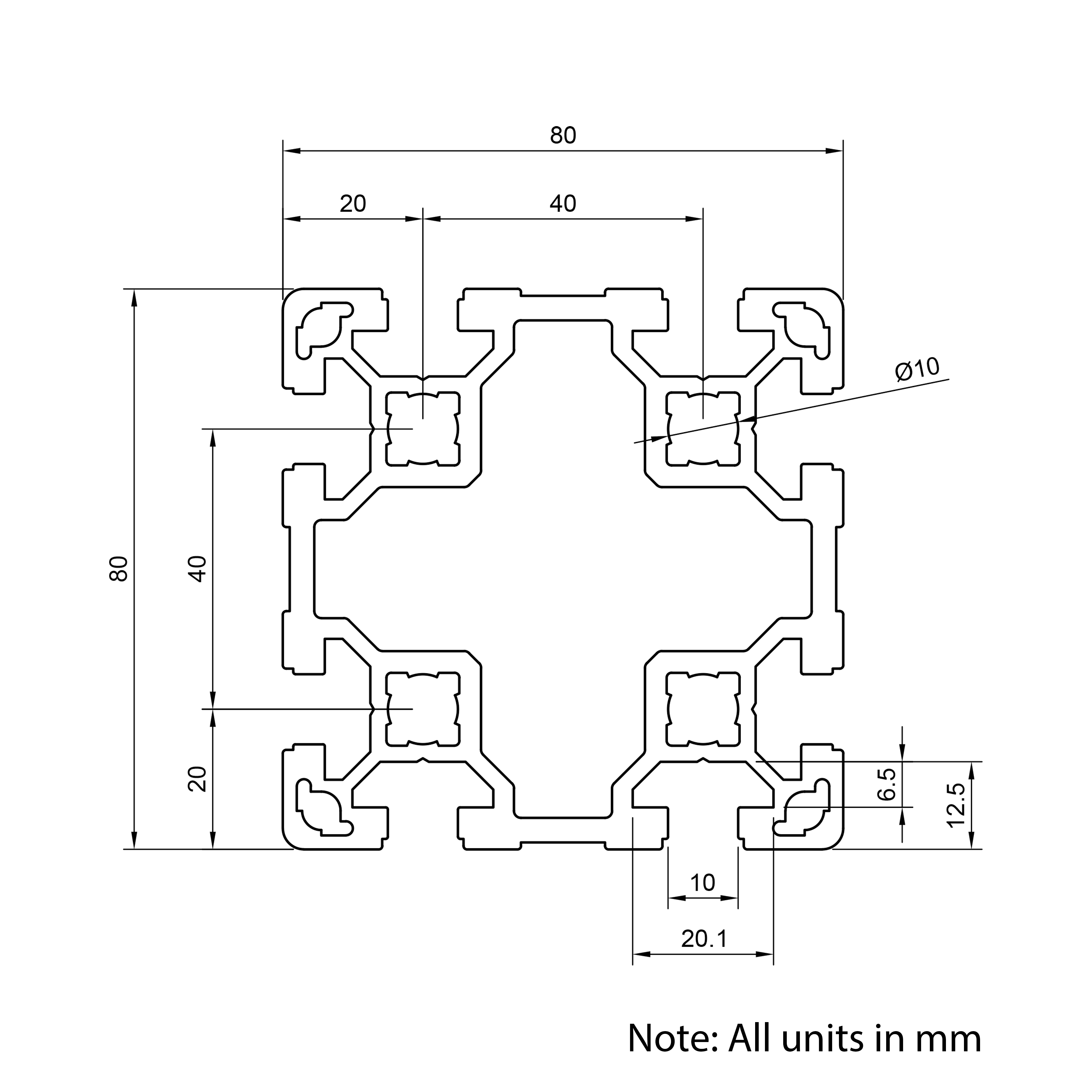

| Profile | 80x80 |
| Material | 6063 T-6 Aluminium |
| Surface Finish | Anodised |
| Colour | Silver |
| Number Of Slots | 8 |
| Slot Width (mm) | 10 |
| Slot Depth (mm) | 12.5 |
| Minimum Length (mm) | 40 |
| Maximum Length (mm) | 3000 |
| Length Tolerance (mm) | +/- 0.2 |
| Angle Tolerance (°) | +/- 0.25° |
| End Hole Diameter (mm) | 10 |
| Tapping Thread | M12 |
| Tapping Thread Pitch (mm) | 1.75 |
| Tapping Thread Depth (mm) | 24 |
| X Moment Of Inertia - (m4) | 132.62x10-8 |
| Y Moment Of Inertia - (m4) | 132.62x10-8 |
| Manufacturing Standard | BS EN 755 |
| Qty | Name |
|---|
| 1x | Aluminium Extrusion Profile - T-Slot - 40 Series - 80x80mm - 1mm - Silver |
| Product Range | Information | Products |
|---|
| One End Thread Reducers | Add M12 thread reducers for one end of the aluminium extrusion. This requires the Tapping Customisation service to be selected. | |
| Both Ends Thread Reducers | Add M12 thread reducers for both ends of the aluminium extrusion. This requires the Tapping Customisation service to be selected. | |
There are no additional notes.
