¶ Assembly

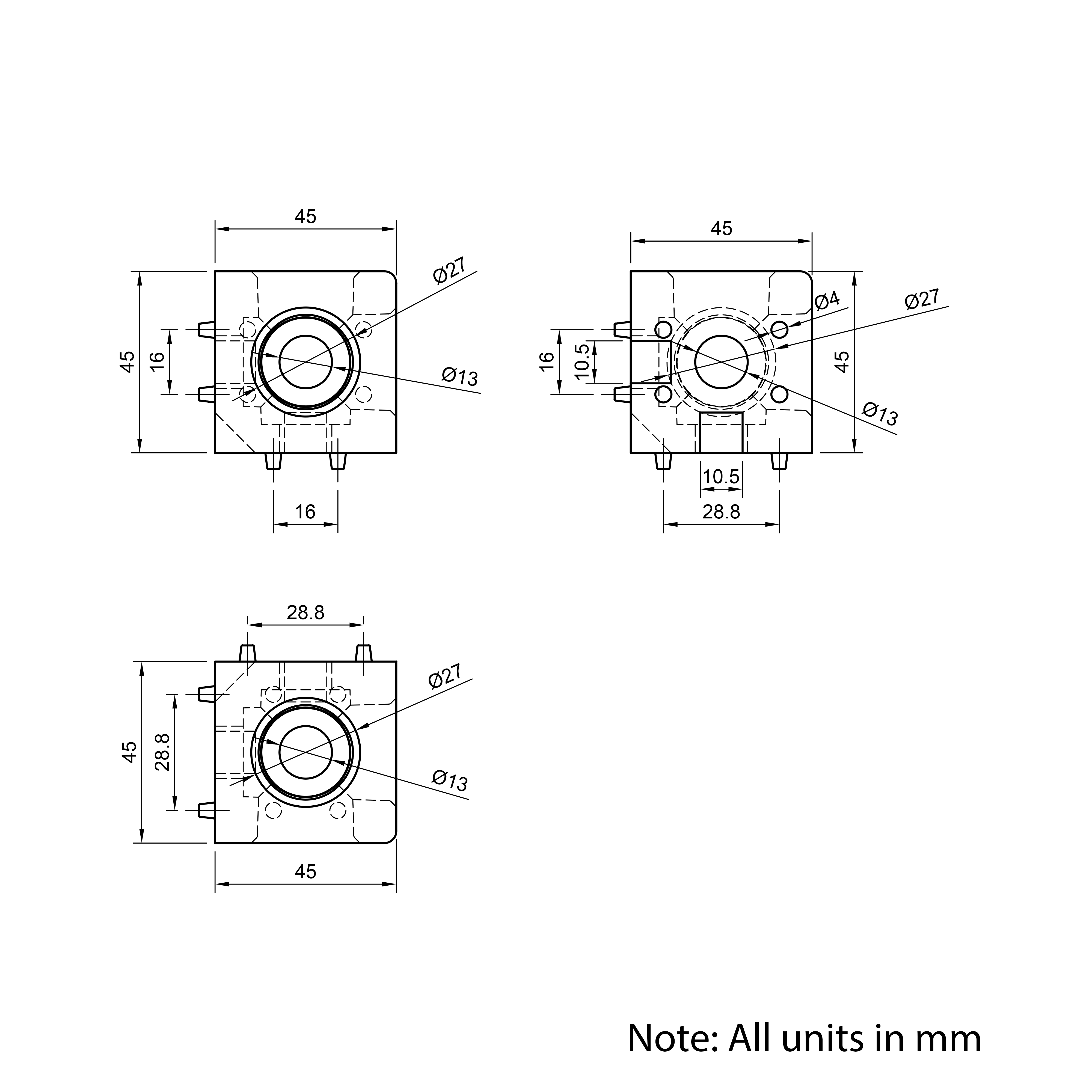

¶ CAD Files
¶ Specifications
| Attribute | Value |
|---|---|
| SKU | CCB-45-3 |
| Brand | Ooznest |
| Stock Type | New |
| Weight (g) | 155.71 |
| Profile Series | 45 Series |
| Material | Die Cast Aluminium |
| Colour | Natural |
| Number Of Fixing Points | 3 |
| Number Of Ways | 3 |
| Connecting Angle (°) | 90 |
| Nominal Bracket Size (mm) | 45x45 (45 Series) |
¶ What's Included
| Qty | Name |
|---|---|
| 1x | 3 Way 45 Series Cube Corner Bracket |
¶ Notes
- Includes 3 x black plastic cover caps
¶ Related Products
| Product Range | Information | Products |
|---|---|---|
| Fasteners | Add M12×25mm Button Head Bolts to use the Cube Corner Bracket with 45 Series T-Slot Aluminium Extrusions. Please note that the end of the extrusion must be M12 Tapped, this is available as a customisation service on the extrusion product pages. |
¶ Additional Notes
There are no additional notes.
