¶ Assembly
¶ CAD Files
¶ Specifications
| Attribute | Value |
|---|---|
| SKU | ILC-A-135-F |
| Brand | Ooznest |
| Stock Type | New |
| Weight (g) | 8.00 |
| Profile Series | 20 Series |
| Material | Carbon Steel |
| Surface Finish | Nickel Plated |
| Colour | Natural |
| Thread | M5 |
| Socket Size (mm) | 2.5 |
| Number Of Fixing Points | 4 |
| Fixings Spacing (mm) | 20 |
| Number Of Ways | 2 |
| Insertion Type | End |
| Connecting Angle (°) | 135 |
¶ What's Included
| Qty | Name |
|---|---|
| 4x | M5x4mm Cup Point Grub Screw (DIN 916, A2 Stainless Steel) |

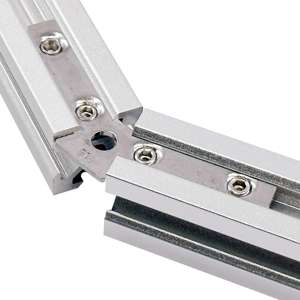

| 1x | 135 Degree 20 Series T/V-Slot Angle Inner Link Connector |
¶ Additional Notes
There are no additional notes.
