¶ Related Resources
There are no related resources.
¶ Assembly

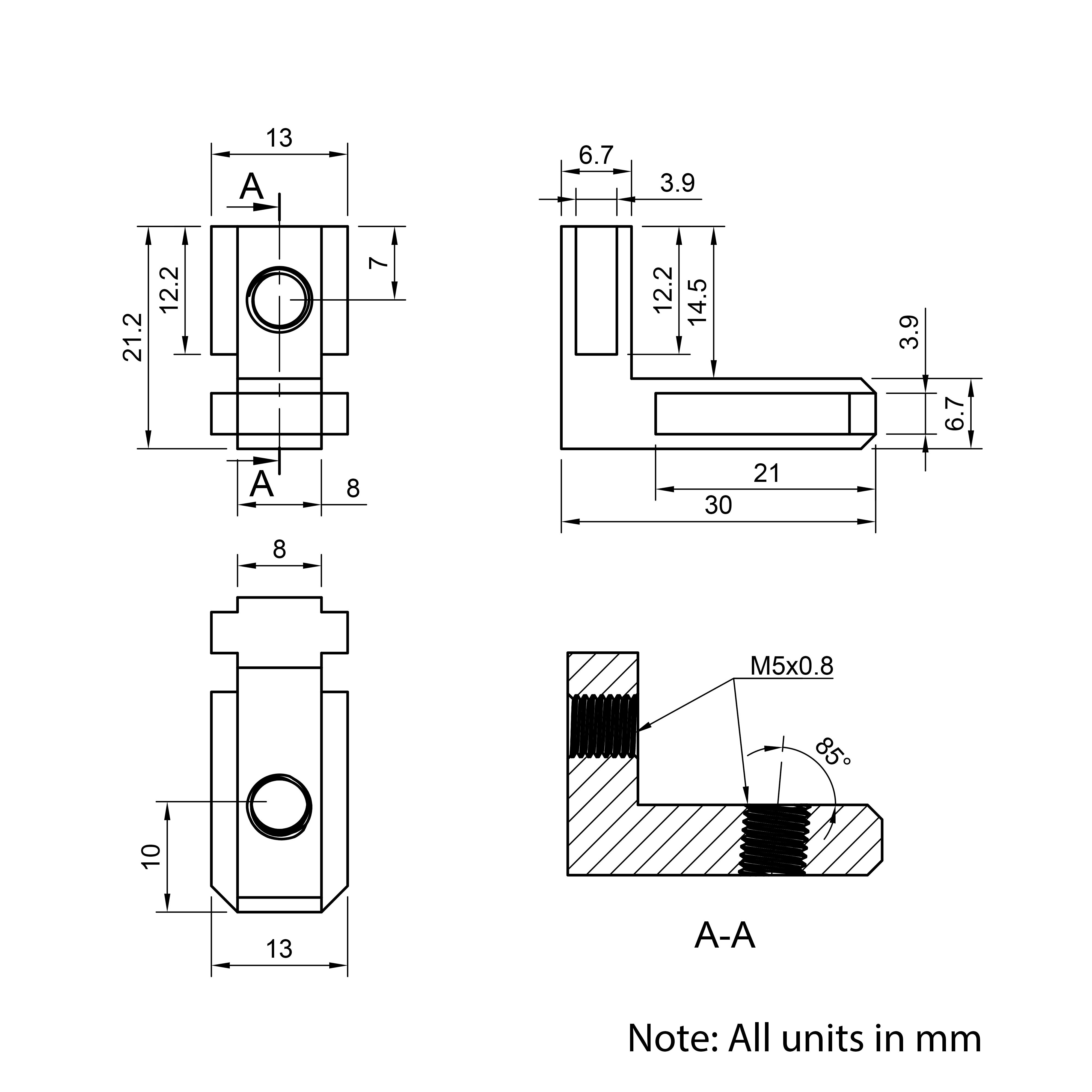

¶ CAD Files
¶ Specifications
| Attribute | Value |
|---|---|
| SKU | HDILC-B-O-30-F |
| Brand | Ooznest |
| Stock Type | New |
| Weight (g) | 20.59 |
| Profile Series | 30 Series |
| Material | Die Cast Zinc |
| Colour | Natural |
| Thread | M6 |
| Socket Size (mm) | 3 |
| Number Of Fixing Points | 2 |
| Number Of Ways | 2 |
| Insertion Type | End |
| Connecting Angle (°) | 90 |
| Orientation | Outside |
¶ What's Included
| Qty | Name |
|---|---|
| 2x | M6x8mm Cup Point Grub Screw (DIN 916, A2 Stainless Steel) |
| 1x | 30 Series T-Slot Heavy Duty Outside Butt Inner Link Connector |
¶ Additional Notes
There are no additional notes.
