¶ Assembly

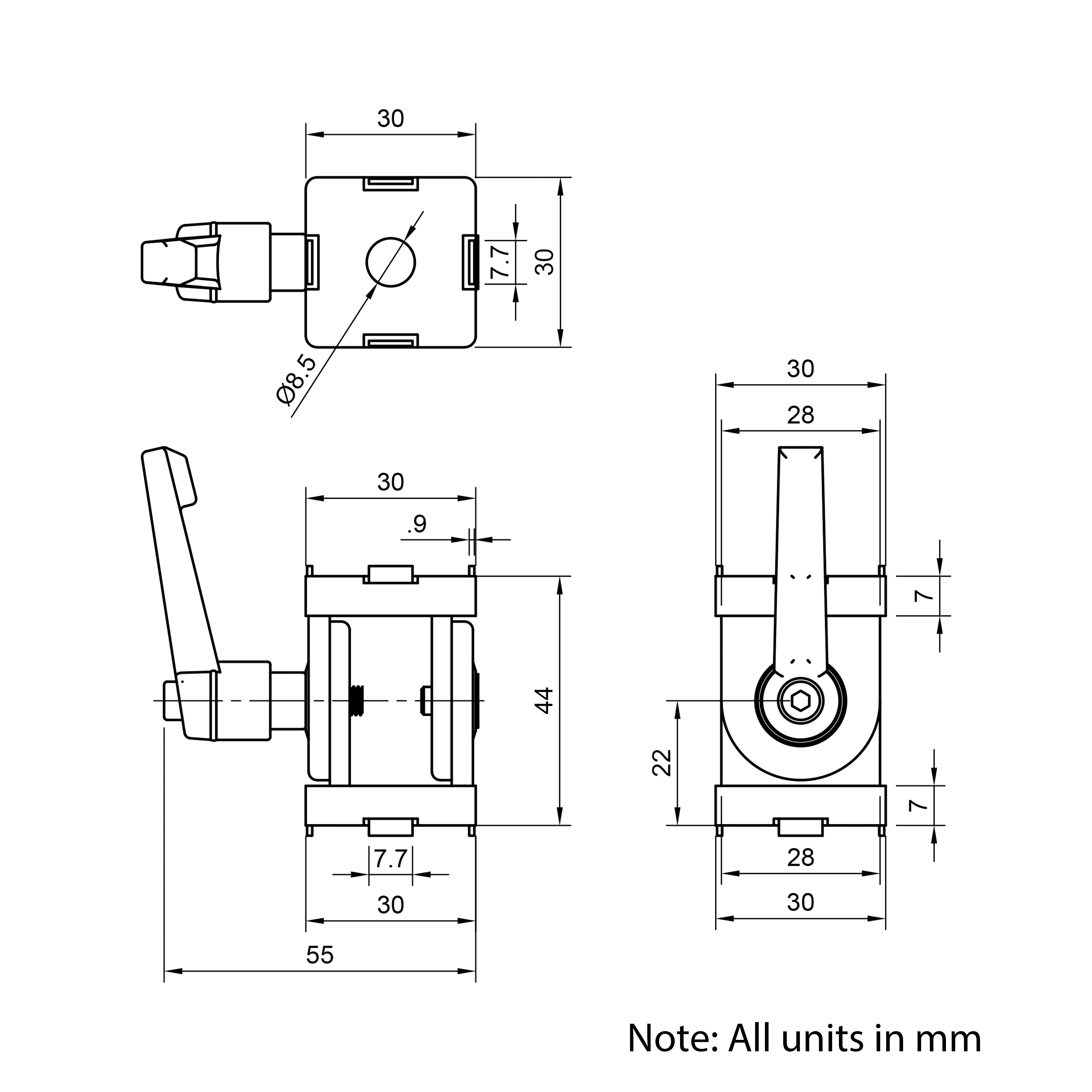

¶ CAD Files
¶ Specifications
| Attribute | Value |
|---|---|
| SKU | PJ-30-AH |
| Brand | Ooznest |
| Stock Type | New |
| Weight (g) | 155.60 |
| Profile Series | 30 Series |
| Profile | 30x30 |
| Material | Die Cast Zinc |
| Surface Finish | Painted |
| Colour | Silver |
| Number Of Fixing Points | 2 |
| Hinge Configuration | 30/30 |
| Degree Of Opening (°) | 180 |
| Locking Method | Clamping Lever |
¶ What's Included
| Qty | Name |
|---|---|
| 1x | 30 Series Clamping Lever Pivot Joint |
¶ Notes
- Has integrated Locating Tabs
¶ Related Products
| Product Range | Information | Products |
|---|---|---|
| Fasteners | Add M8×20mm Cap Head Bolts to use the Pivot Joint with 30 Series T-Slot Aluminium Extrusions. Please note that the end of the extrusion must be M5 Tapped, this is available as a customisation service on the extrusion product pages. |
¶ Additional Notes
There are no additional notes.
