¶ Assembly

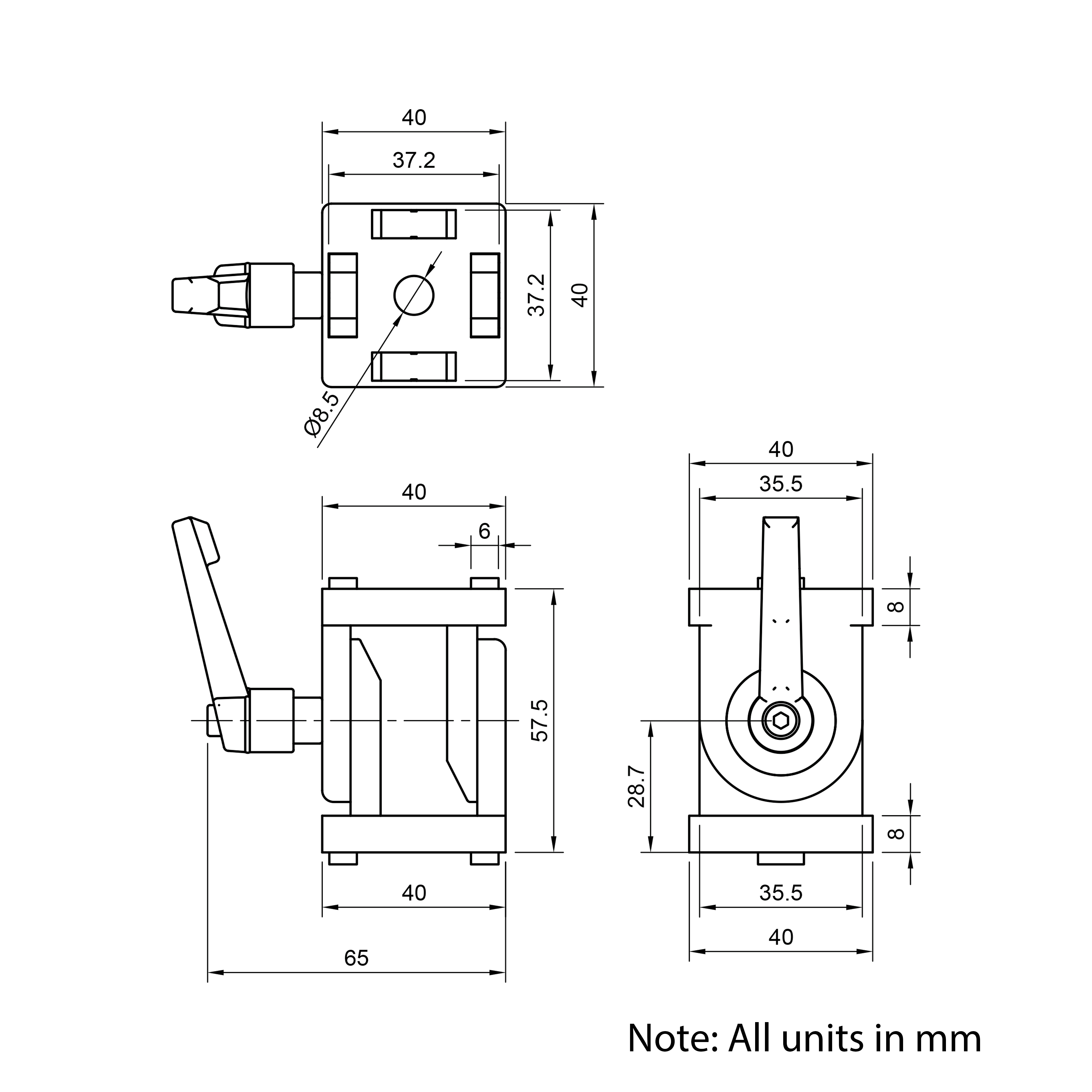

¶ CAD Files
¶ Specifications
| Attribute | Value |
|---|---|
| SKU | PJ-40-AH |
| Brand | Ooznest |
| Stock Type | New |
| Weight (g) | 331.10 |
| Profile Series | 40 Series |
| Profile | 40x40 |
| Material | Die Cast Zinc |
| Surface Finish | Painted |
| Colour | Silver |
| Number Of Fixing Points | 2 |
| Hinge Configuration | 40/40 |
| Degree Of Opening (°) | 180 |
| Locking Method | Clamping Lever |
¶ What's Included
| Qty | Name |
|---|---|
| 1x | 40 Series Clamping Lever Pivot Joint |
¶ Notes
- Includes 4 x Locating Pieces
¶ Related Products
| Product Range | Information | Products |
|---|---|---|
| Fasteners | Add the FS-028 Fastener Set to get the required fasteners for using the Pivot Joint with 40 Series T-Slot Aluminium Extrusions. Please note that the end of the extrusion must be M12 Tapped with a M12 to M8 Thread Reducer, this is available as a customisation service on the extrusion product pages. Fastener Set FS-028 includes the Thread Reducer |
