¶ Assembly

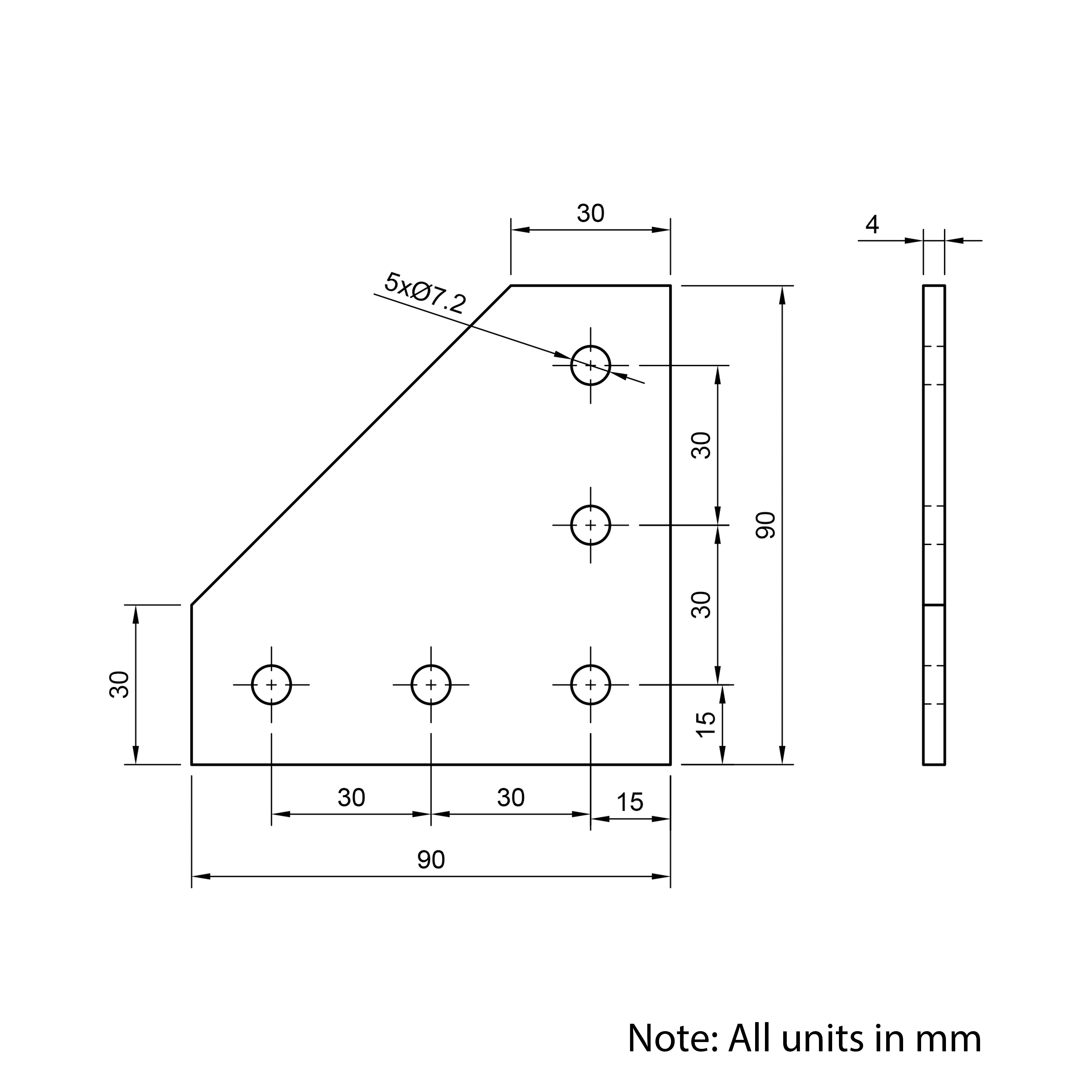

¶ CAD Files
¶ Specifications
| Attribute | Value |
|---|---|
| SKU | PC-90-SS-30-A-S |
| Brand | Ooznest |
| Stock Type | New |
| Weight (g) | 64.61 |
| Profile Series | 30 Series |
| Material | 6063 T-5 Aluminium |
| Surface Finish | Anodised |
| Colour | Silver |
| Thickness (mm) | 4 |
| Number Of Fixing Points | 5 |
| Fixings Spacing (mm) | 30 |
| Number Of Ways | 2 |
| Connecting Angle (°) | 90 |
| Version | Single Slot |
¶ What's Included
| Qty | Name |
|---|---|
| 1x | Single Slot 30 Series 90 Degree Plate Connector (Aluminium) |
¶ Related Products
| Product Range | Information | Products |
|---|---|---|
| Fasteners | Add the FS-031 Fastener Set to get the required fasteners for using the plate connector with 30 Series T-Slot Aluminium Extrusions. |
¶ Additional Notes
There are no additional notes.
