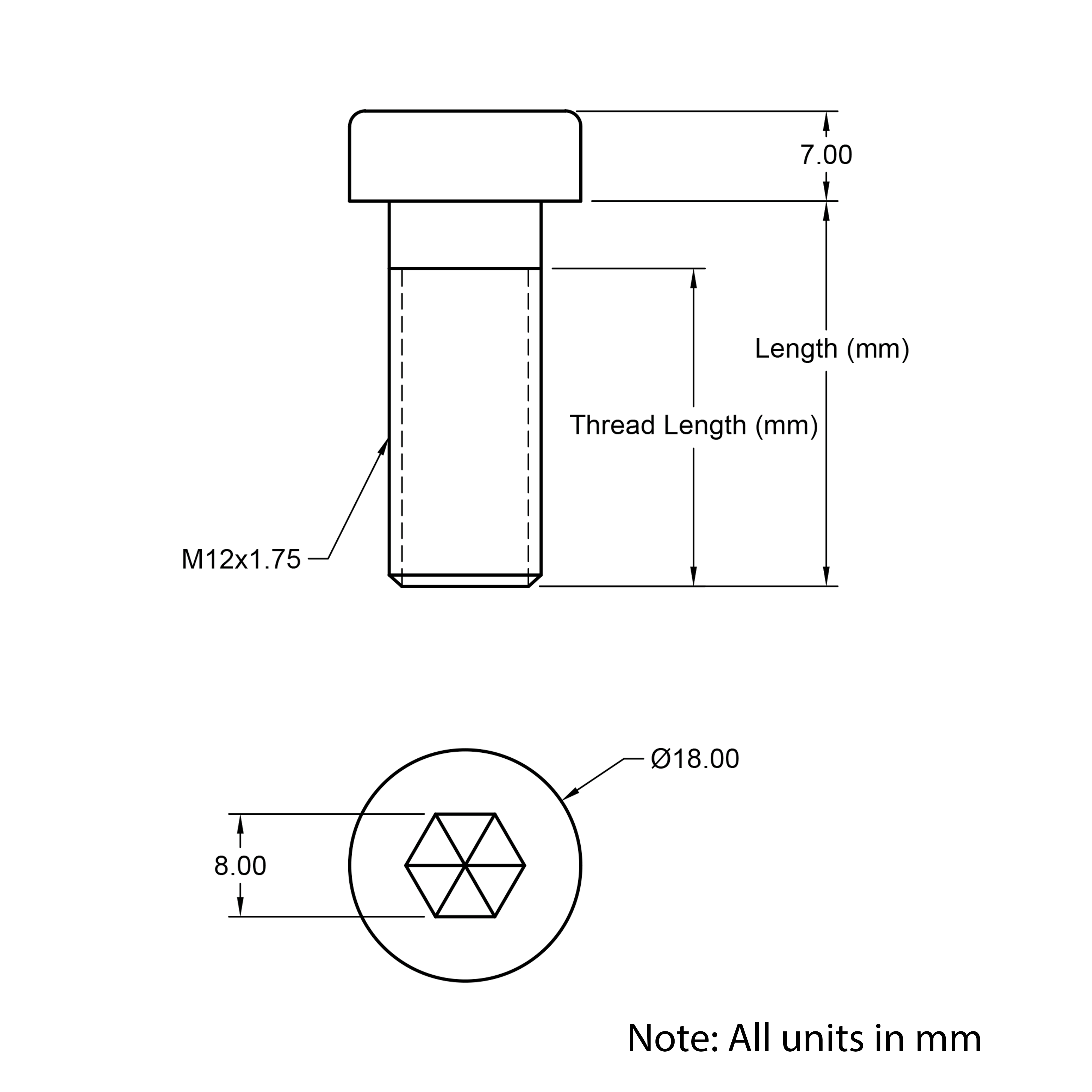

¶ CAD Files
¶ Specifications
| Attribute | Value |
|---|---|
| SKU | CHB-M12-30-LH |
| Brand | Ooznest |
| Stock Type | New |
| Weight (g) | 31.30 |
| Material | A2 Stainless Steel |
| Colour | Natural |
| Thread | M12 |
| Thread Pitch (mm) | 1.75 |
| Thread Length (mm) | 30 |
| Head Type | Low Cap |
| Head Diameter (mm) | 18 |
| Head Length (mm) | 7 |
| Socket Size (mm) | 10 |
| Length (mm) | 30 |
| Manufacturing Standard | DIN 7984 |
¶ What's Included
| Qty | Name |
|---|---|
| 1x | M12x30mm Socket Low Cap Head Bolt (DIN 7984, A2 Stainless Steel) |
¶ Additional Notes
There are no additional notes.
