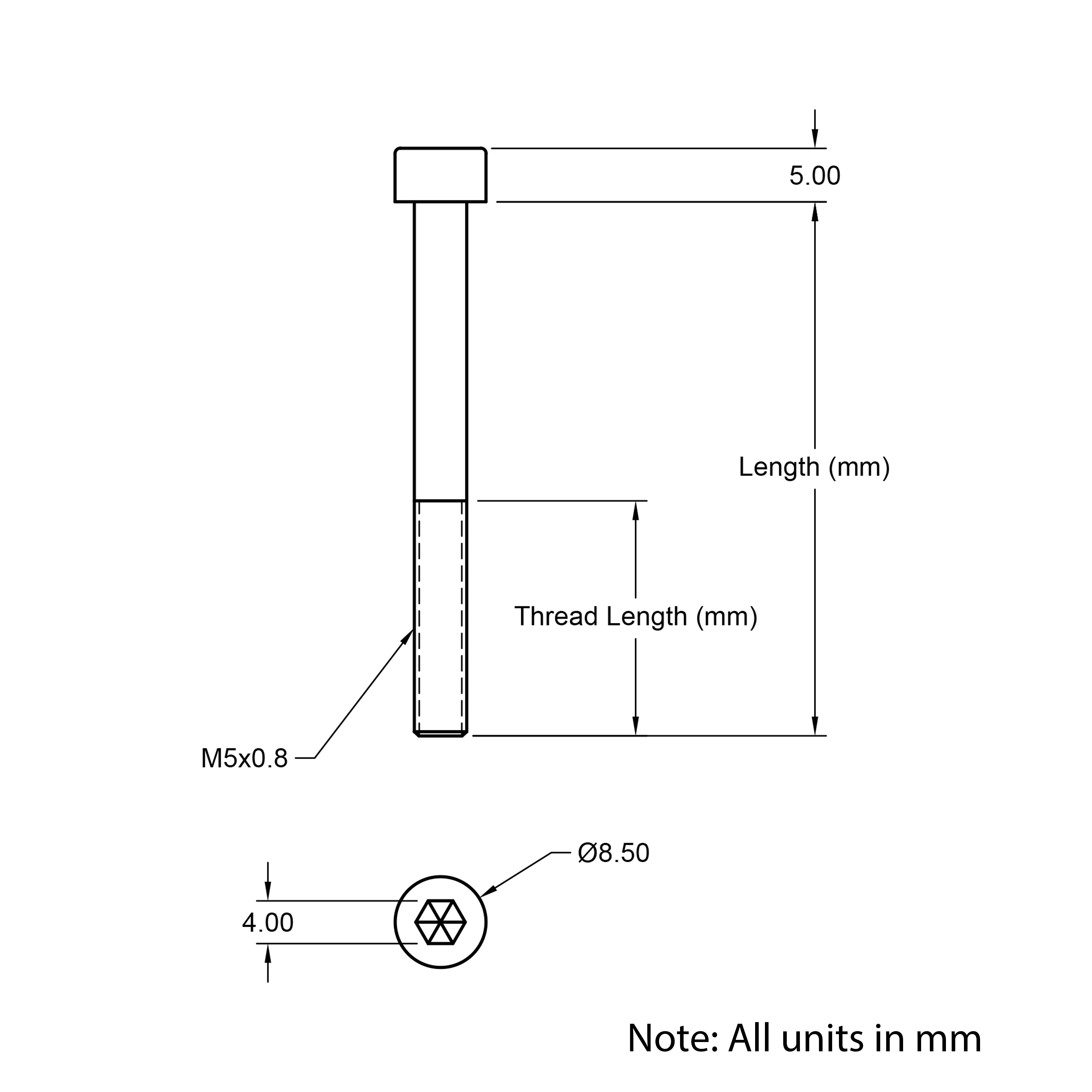

¶ CAD Files
¶ Specifications
| Attribute | Value |
|---|---|
| SKU | CHB-M5-45 |
| Brand | Ooznest |
| Stock Type | New |
| Weight (g) | 7.80 |
| Material | A2 Stainless Steel |
| Colour | Natural |
| Thread | M5 |
| Thread Pitch (mm) | 0.8 |
| Thread Length (mm) | 23 |
| Head Type | Cap |
| Head Diameter (mm) | 8.5 |
| Head Length (mm) | 5 |
| Socket Size (mm) | 4 |
| Length (mm) | 45 |
| Manufacturing Standard | DIN 912 |
¶ What's Included
| Qty | Name |
|---|---|
| 1x | M5x45mm Socket Cap Head Bolt (DIN 912, A2 Stainless Steel) |
¶ Additional Notes
There are no additional notes.
