¶ CAD Files

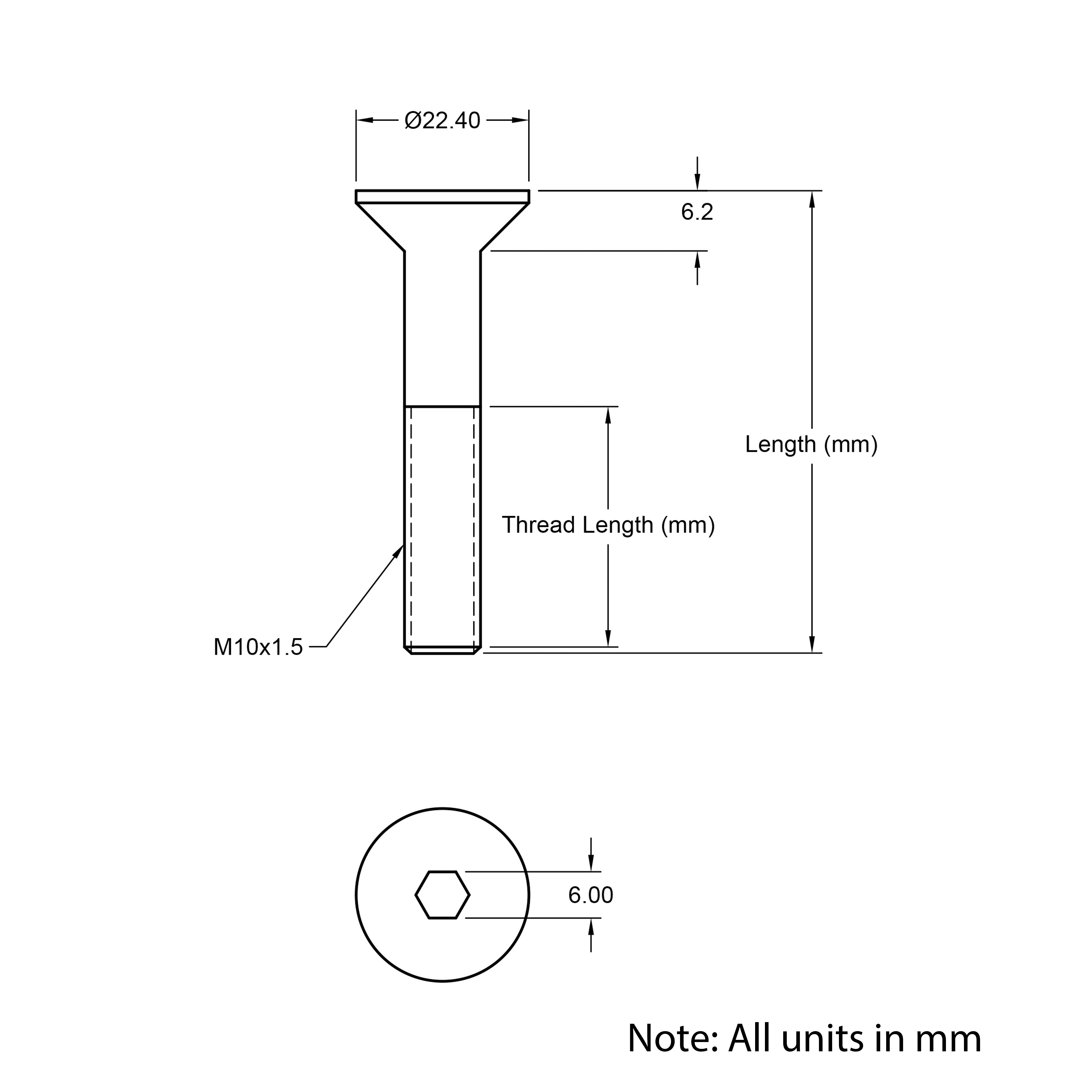

¶ Specifications
| Attribute | Value |
|---|---|
| SKU | CSB-M10-40 |
| Brand | Ooznest |
| Stock Type | New |
| Weight (g) | 24.50 |
| Material | A2 Stainless Steel |
| Colour | Natural |
| Thread | M10 |
| Thread Pitch (mm) | 1.5 |
| Thread Length (mm) | 33.8 |
| Head Type | Countersunk |
| Head Diameter (mm) | 23.12 |
| Head Length (mm) | 6.2 |
| Socket Size (mm) | 6 |
| Length (mm) | 40 |
| Manufacturing Standard | ISO 10647 |
¶ What's Included
| Qty | Name |
|---|---|
| 1x | M10x40mm Countersunk Bolt (ISO 10642, A2 Stainless Steel) |
¶ Additional Notes
There are no additional notes.
