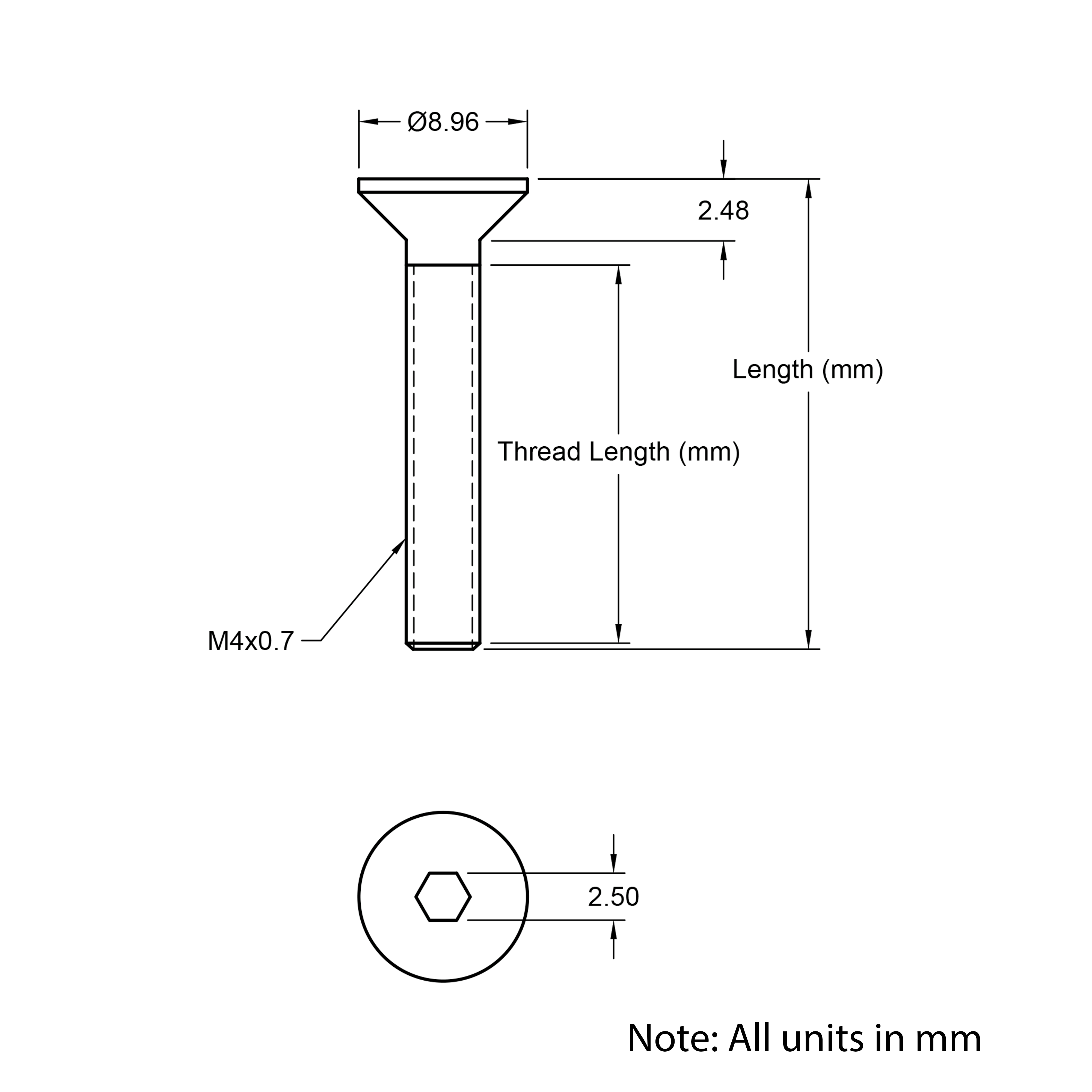

¶ CAD Files
¶ Specifications
| Attribute | Value |
|---|---|
| SKU | CSB-M4-18 |
| Brand | Ooznest |
| Stock Type | New |
| Weight (g) | 1.60 |
| Material | A2 Stainless Steel |
| Colour | Natural |
| Thread | M4 |
| Thread Pitch (mm) | 0.7 |
| Thread Length (mm) | 15.52 |
| Head Type | Countersunk |
| Head Diameter (mm) | 7.53 |
| Head Length (mm) | 2.48 |
| Socket Size (mm) | 2.5 |
| Length (mm) | 18 |
| Manufacturing Standard | ISO 10678 |
¶ What's Included
| Qty | Name |
|---|---|
| 1x | M4x18mm Countersunk Bolt (ISO 10642, A2 Stainless Steel) |
¶ Additional Notes
There are no additional notes.
