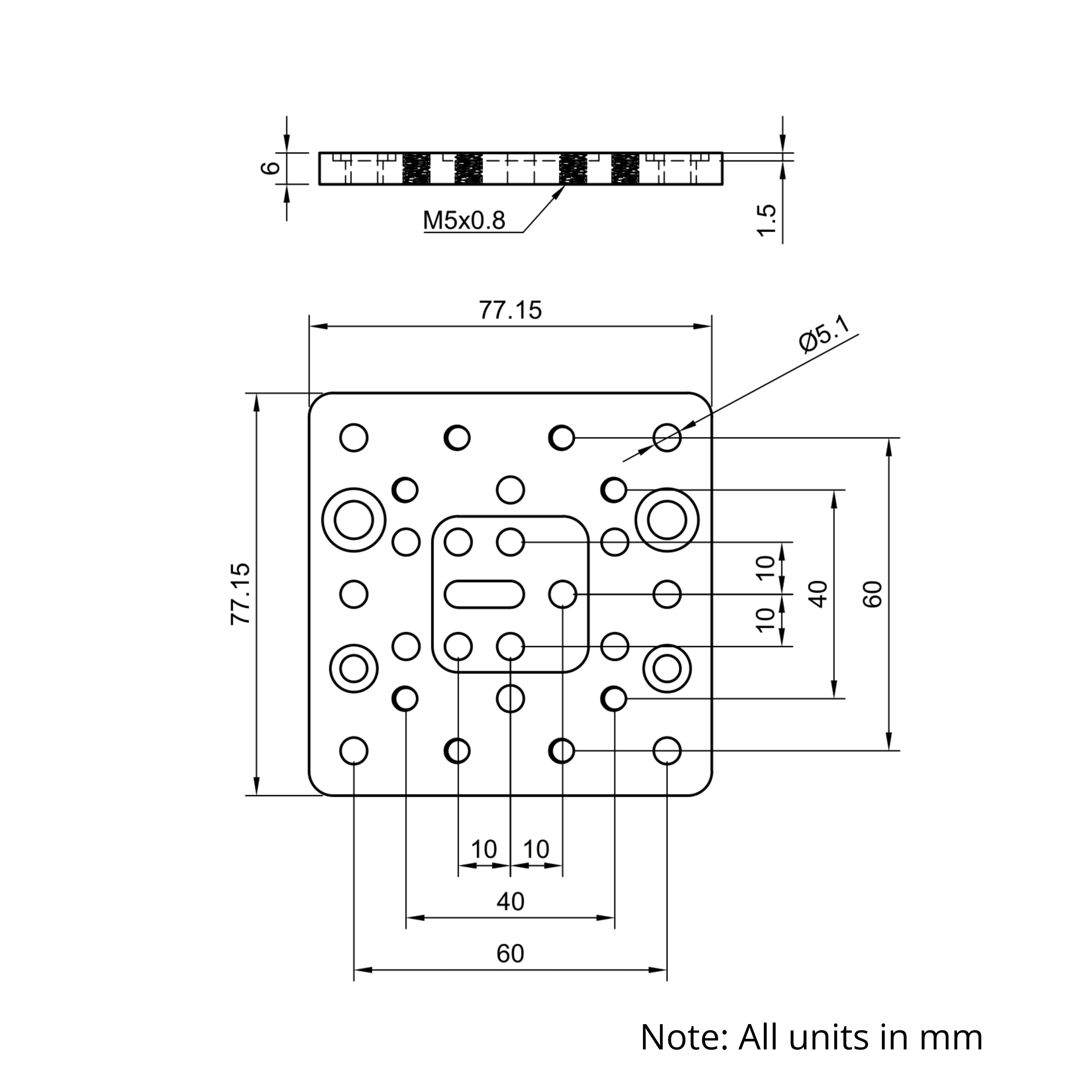

¶ CAD Files
¶ Specifications
| Attribute | Value |
|---|---|
| SKU | CBGP-M |
| Brand | Ooznest |
| Stock Type | New |
| Weight (g) | 83.00 |
| Profile Series | 20 Series |
| Material | 6063 T-5 Aluminium |
| Surface Finish | Anodised |
| Colour | Black |
| Thickness (mm) | 6 |
| Version | Medium (77.5x77.5mm) |
| For Use With Wheel Size | Mini |
| Cy Static Load Rating (N) | 35.59 |
| Cy Dynamic Load Rating (N) | 97.27 |
| Cz Stat Load 80mm V-Slot (N) | 28.980 |
| Cz Dyna Load 80mm V-Slot (N) | 79.200 |
| Mx Stat Mom 80mm V-Slot (Nm) | 0.507 |
| My Static Moment Rating (Nm) | 5.338 |
| Mz Static Moment Rating (Nm) | 4.341 |
¶ What's Included
| Qty | Name |
|---|---|
| 1x | Medium C-Beam Gantry Plate (77.5x77.5mm) |
¶ Related Products
| Product Range | Information | Products |
|---|---|---|
| POM Wheels | Add the MS-003 Motion Set to get the required wheels, bearings, and fasteners to use the gantry plate with C-Beam Extrusion. POM wheels are ideal for low-friction, low-noise applications. | |
| Polycarbonate Wheels | Add the MS-004 Motion Set to get the required wheels, bearings, and fasteners to use the gantry plate with C-Beam Extrusion. Polycarbonate wheels are more durable and are better suited if the gantry will remain stationary for long periods of time. |
¶ Additional Notes
There are no additional notes.
