¶ Specifications
| Attribute | Value |
|---|---|
| SKU | VSGP-L |
| Brand | Ooznest |
| Stock Type | New |
| Weight (g) | 73.00 |
| Profile Series | 20 Series |
| Material | 6063 T-5 Aluminium |
| Surface Finish | Anodised |
| Colour | Black |
| Thickness (mm) | 3 |

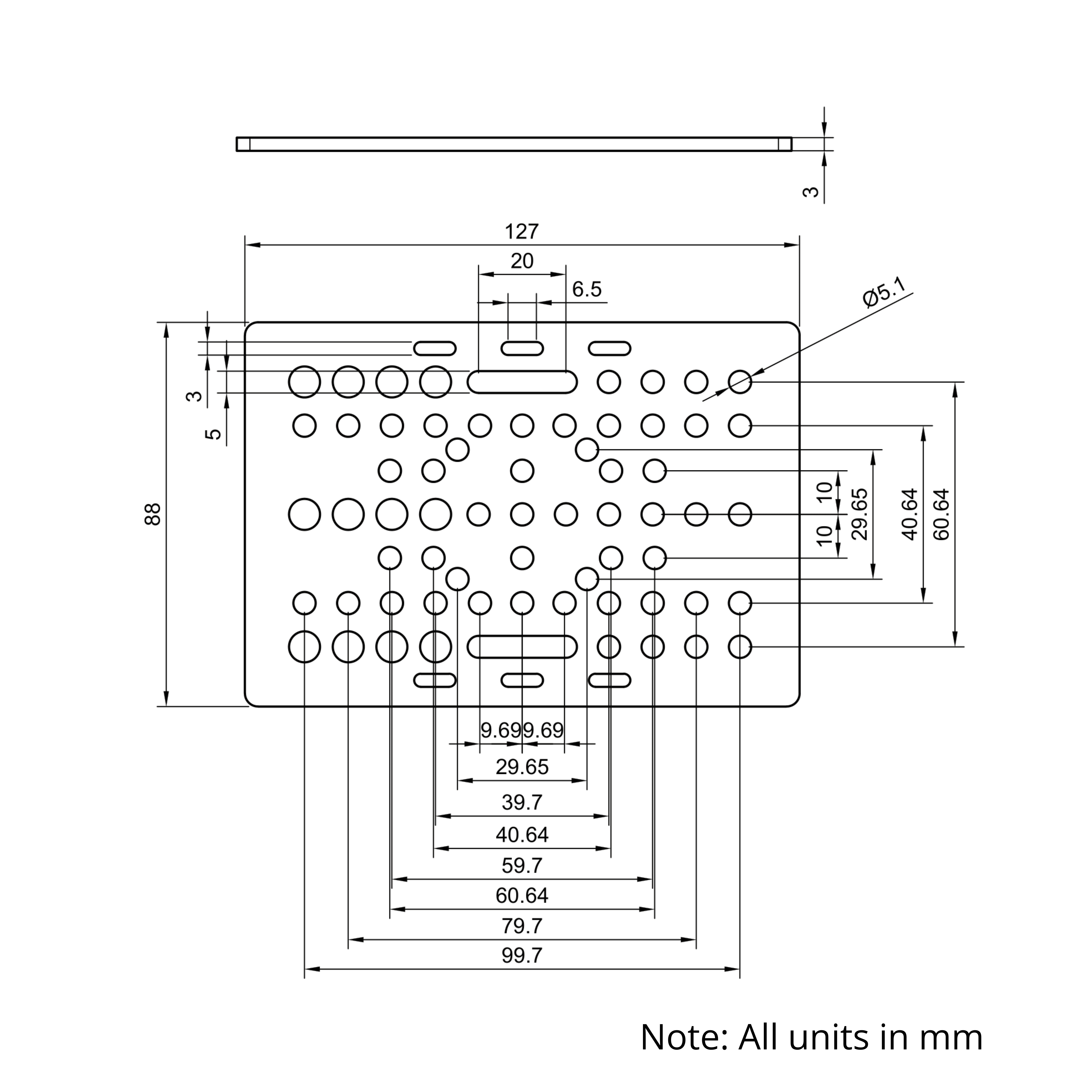

| Version | Large (127x88mm) |
| For Use With Wheel Size | Regular |

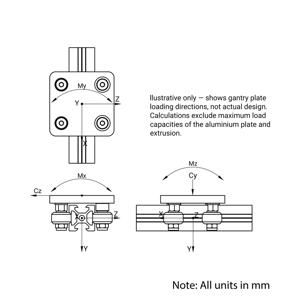

| Cy Static Load Rating (N) | 144.71 |
| Cy Dynamic Load Rating (N) | 392.63 |
| Cz Stat Load 20mm V-Slot (N) | 185.330 |
| Cz Stat Load 40mm V-Slot (N) | 278.690 |
| Cz Stat Load 60mm V-Slot (N) | 372.060 |
| Cz Stat Load 80mm V-Slot (N) | 465.420 |
| Cz Dyna Load 20mm V-Slot (N) | 502.820 |
| Cz Dyna Load 40mm V-Slot (N) | 756.130 |
| Cz Dyna Load 60mm V-Slot (N) | 1009.440 |
| Cz Dyna Load 80mm V-Slot (N) | 1262.750 |
| Mx Stat Mom 20mm V-Slot (Nm) | 2.873 |
| Mx Stat Mom 40mm V-Slot (Nm) | 4.320 |
| Mx Stat Mom 60mm V-Slot (Nm) | 5.767 |
| Mx Stat Mom 80mm V-Slot (Nm) | 7.214 |
| My Static Moment Rating (Nm) | 21.939 |
| Mz Static Moment Rating (Nm) | 4.388 |
¶ What's Included
| Qty | Name |
|---|---|
| 1x | Large V-Slot Gantry Plate (127x88mm) |
¶ Related Products
| Product Range | Information | Products |
|---|---|---|

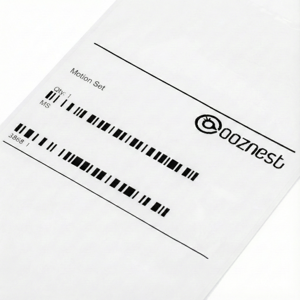

| POM Wheels | Add the MS-001 Motion Set to get the required wheels, bearings, and fasteners to use the gantry plate with T/V-Slot Extrusion. POM wheels are ideal for low-friction, low-noise applications. | |
| Polycarbonate Wheels | Add the MS-002 Motion Set to get the required wheels, bearings, and fasteners to use the gantry plate with T/V-Slot Extrusion. Polycarbonate wheels are more durable and are better suited if the gantry will remain stationary for long periods of time. |
¶ Additional Notes
There are no additional notes.
