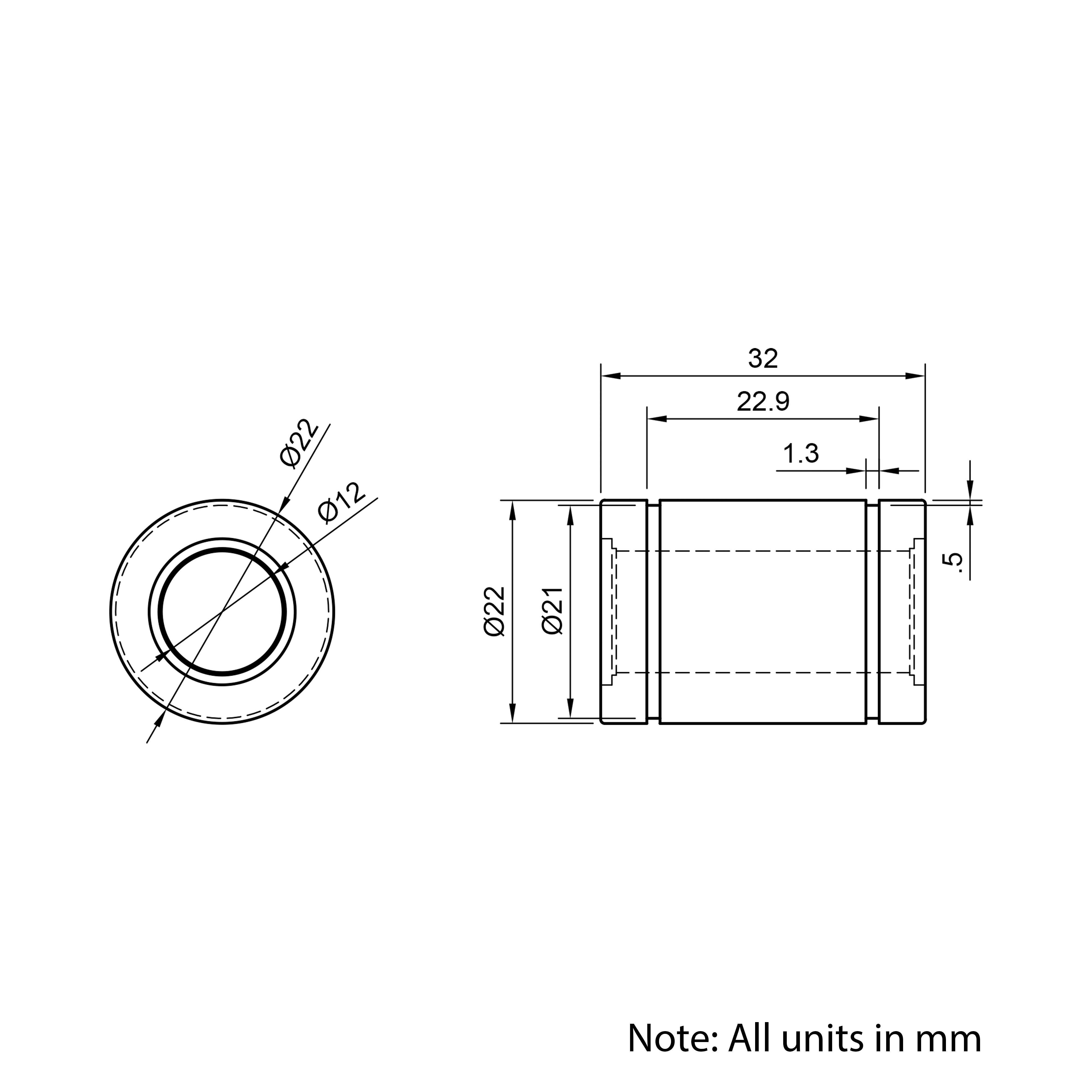

¶ CAD Files
¶ Specifications
| Attribute | Value |
|---|---|
| SKU | LB-LME12UU |
| Brand | Ooznest |
| Stock Type | New |
| Weight (g) | 41.00 |
| Inside Diameter (mm) | 12 |
| Outside Diameter (mm) | 22 |
| Length (mm) | 32 |
| Inside Diameter Tolerance (mm) | 0 - 0.008 |
| Seal Specification | Double Rubber Seal |
| Static Radial Load Rating (N) | 784 |
| Dynamic Radial Load Rating (N) | 510 |
¶ What's Included
| Qty | Name |
|---|---|
| 1x | 12mm Linear Ball Bearing (LME12UU) |
¶ Additional Notes
There are no additional notes.
