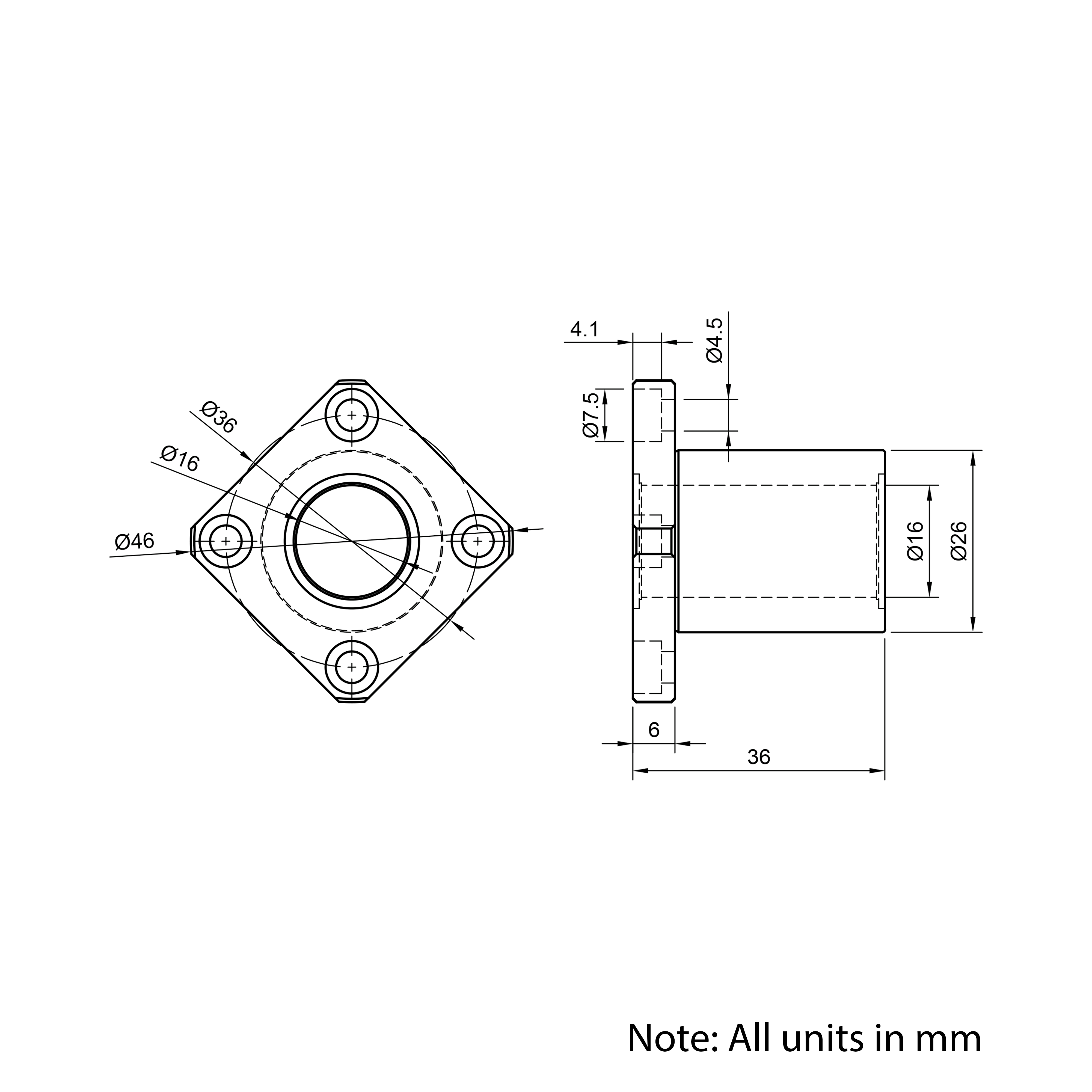

¶ CAD Files
¶ Specifications
| Attribute | Value |
|---|---|
| SKU | LRFB-LMEK16UU |
| Brand | Ooznest |
| Stock Type | New |
| Weight (g) | 90.00 |
| Inside Diameter (mm) | 16 |
| Outside Diameter (mm) | 26 |
| Length (mm) | 36 |
| Number Of Fixing Points | 4 |
| Inside Diameter Tolerance (mm) | -0.001 - 0.009 |
| Seal Specification | Double Rubber Seal |
| Static Radial Load Rating (N) | 890 |
| Dynamic Radial Load Rating (N) | 570 |
¶ What's Included
| Qty | Name |
|---|---|
| 1x | 16mm Linear Square Flanged Ball Bearing (LMEK16UU) |
¶ Additional Notes
There are no additional notes.
