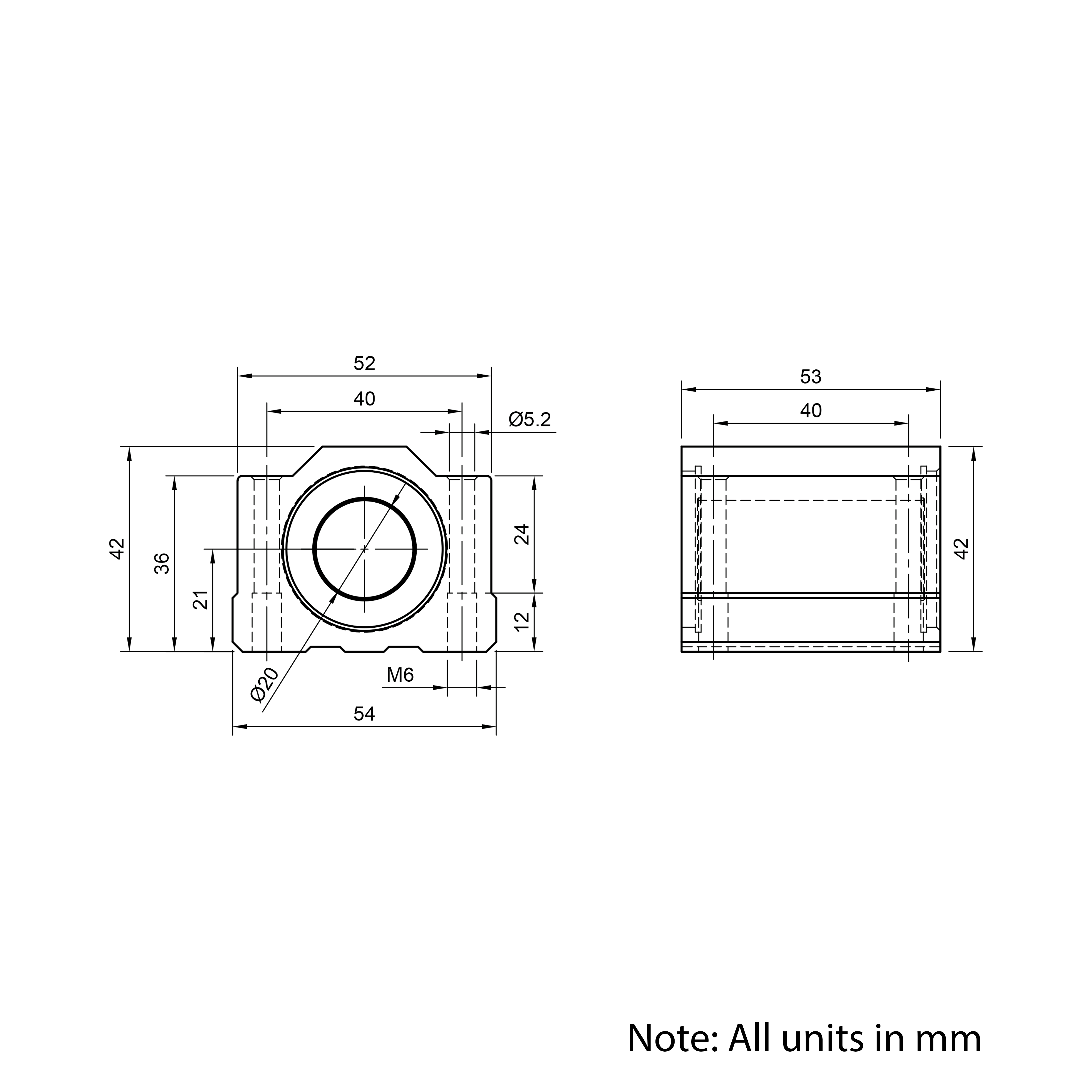

¶ CAD Files
¶ Specifications
| Attribute | Value |
|---|---|
| SKU | LHB-SCE20UU |
| Brand | Ooznest |
| Stock Type | New |
| Weight (g) | 270.00 |
| Thread | M6 |
| Thread Pitch (mm) | 1 |
| Thread Length (mm) | 12 |
| Inside Diameter (mm) | 20 |
| Length (mm) | 53 |
| Number Of Fixing Points | 4 |
| Inside Diameter Tolerance (mm) | -0.011 - 0 |
| Seal Specification | Double Rubber Seal |
| Static Radial Load Rating (N) | 1370 |
| Dynamic Radial Load Rating (N) | 882 |
¶ What's Included
| Qty | Name |
|---|---|
| 1x | 20mm Linear Housed Ball Bearing (SCE20UU) |
¶ Additional Notes
There are no additional notes.
