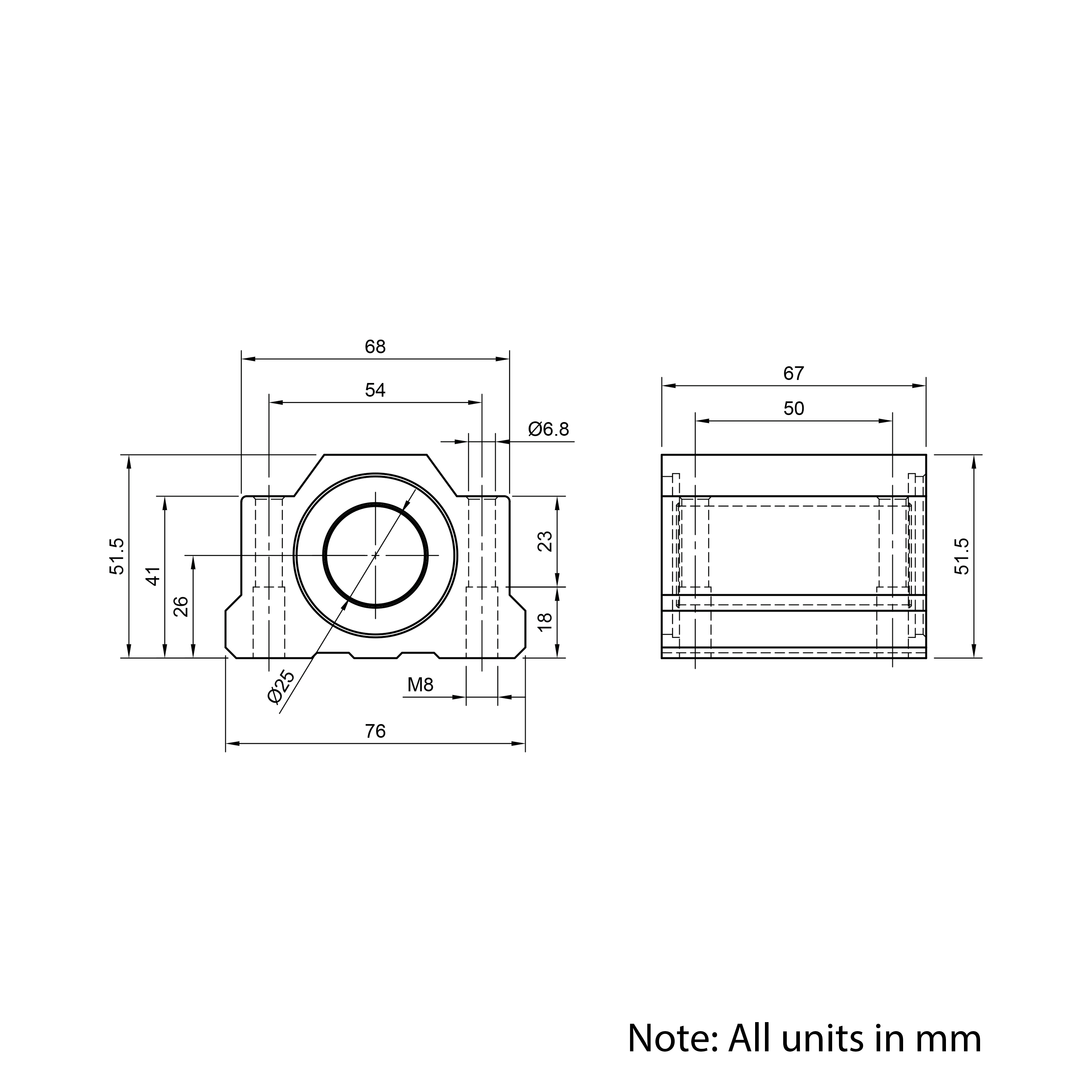

¶ CAD Files
¶ Specifications
| Attribute | Value |
|---|---|
| SKU | LHB-SCE25UU |
| Brand | Ooznest |
| Stock Type | New |
| Weight (g) | 600.00 |
| Thread | M8 |
| Thread Pitch (mm) | 1.25 |
| Thread Length (mm) | 18 |
| Inside Diameter (mm) | 25 |
| Length (mm) | 67 |
| Number Of Fixing Points | 4 |
| Inside Diameter Tolerance (mm) | -0.011 - 0 |
| Seal Specification | Double Rubber Seal |
| Static Radial Load Rating (N) | 1570 |
| Dynamic Radial Load Rating (N) | 980 |
¶ What's Included
| Qty | Name |
|---|---|
| 1x | 25mm Linear Housed Ball Bearing (SCE25UU) |
¶ Additional Notes
There are no additional notes.
