¶ Related Resources

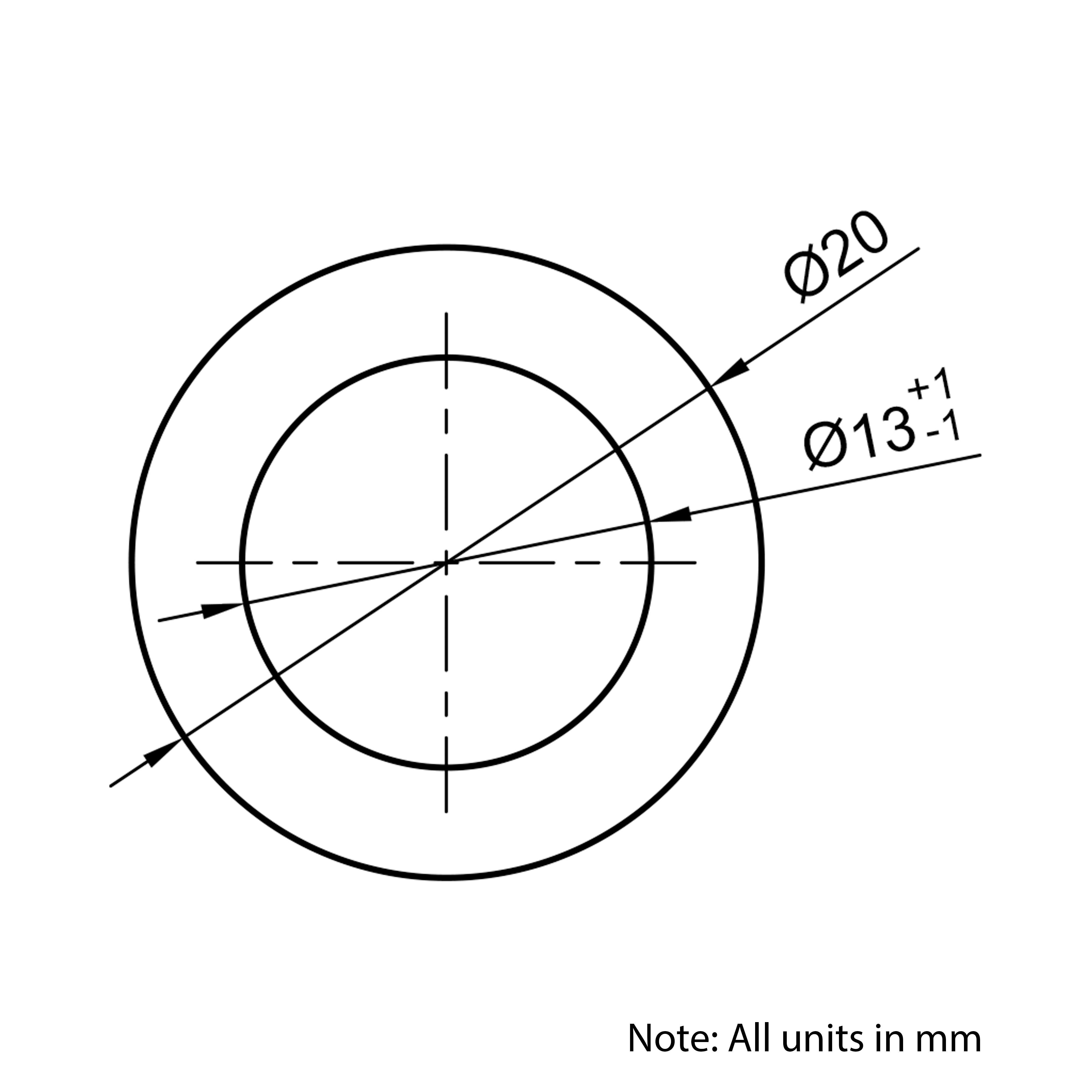

¶ CAD Files
¶ Specifications
| Attribute | Value |
|---|---|
| SKU | HGLS-H-20-CTS |
| Brand | Ooznest |
| Stock Type | New |
| Weight (g) | 1.25 |
| Linear Shaft Type | Hollow |
| Material | CF53 Steel |
| Tensile Strength (N/mm2) | 610 |
| Inside Diameter (mm) | 12 - 14 |
| Outside Diameter (mm) | 20 |
| Diameter Tolerance (mm) | h7 +0.000, -0.021 |
| Roundness (mm) | +/- 0.009 |
| Straightness (mm) | +/- 0.2 |
| Minimum Length (mm) | 100 |
| Maximum Length (mm) | 3000 |
| Length Tolerance (mm) | +/- 0.5 |
| Induction Layer Thickness (mm) | 0.9 |
| Induction Layer Hardness (HRC) | 59 |
| X Moment Of Inertia - (m4) | 596.824x10-11 |
| Y Moment Of Inertia - (m4) | 596.824x10-11 |
¶ What's Included
| Qty | Name |
|---|---|
| 1x | Hardened Ground Linear Shaft - Hollow - 20mm - 1mm |
¶ Related Products
| Product Range | Information | Products |
|---|---|---|
| Linear Bearings | Add Linear Bearings to slide on the linear shaft. |
¶ Additional Notes
There are no additional notes.
