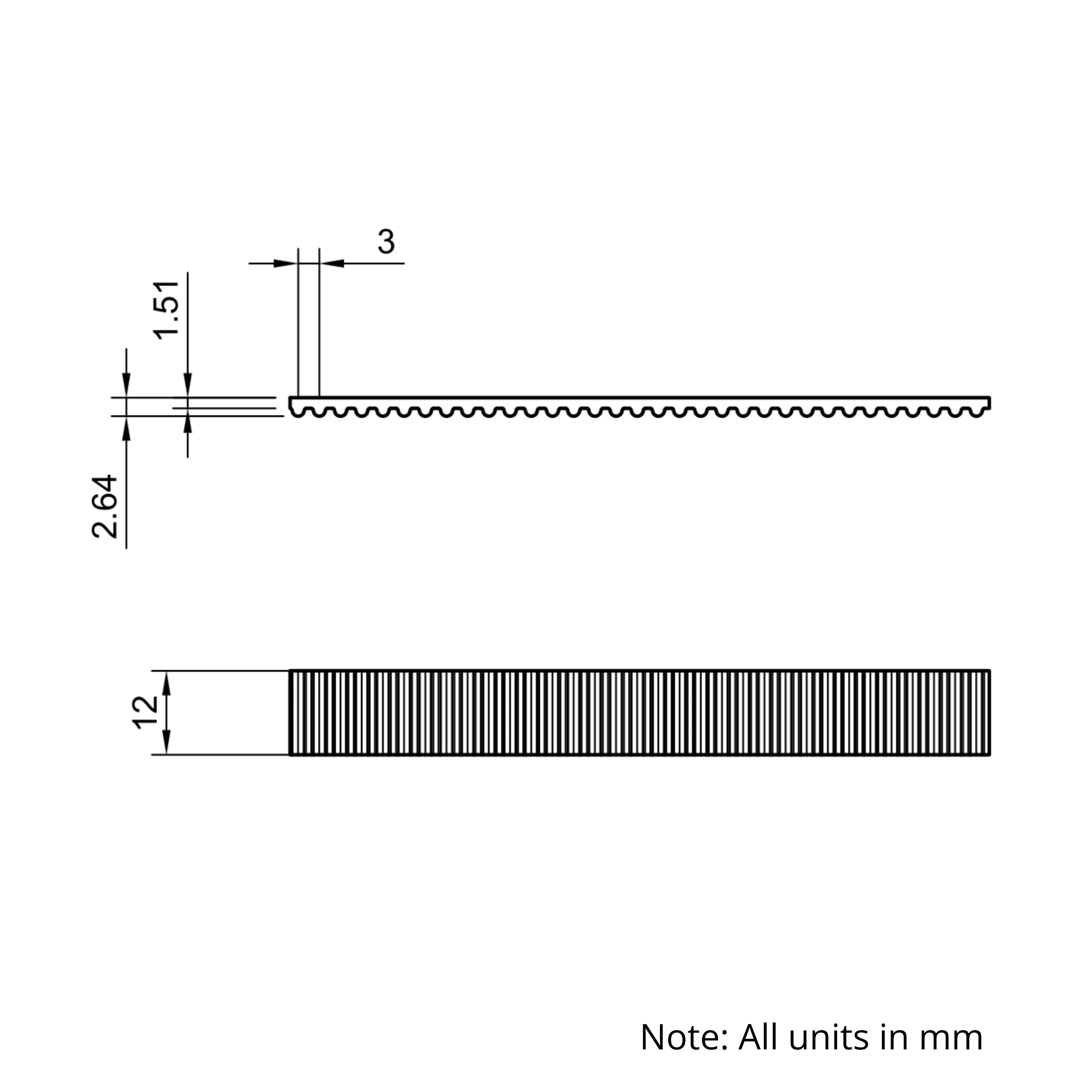

¶ CAD Files
¶ Specifications
| Attribute | Value |
|---|---|
| SKU | OTB-GT-3MR-N-12-CTS |
| Brand | Ooznest |
| Stock Type | New |
| Weight (g) | 30.00 |
| Material | Neoprene |
| Colour | Black |
| Minimum Length (mm) | 25 |
| Maximum Length (mm) | 20000 |
| Length Tolerance (mm) | +10 |
| Maximum Temperature (°C) | 85 |
| Minimum Temperature (°C) | -34 |
| Tooth Profile | GT 3MR (3mm Pitch) |
| Tooth Pitch (mm) | 3 |
| Working Tension (N) | 59 |
| Reinforcement Material | Fibreglass |
| Belt Width (mm) | 12 |
| Good Resistance To | Alcohols |
| Moderate Resistance To | Alkalis (Bases), Cold Water, Dilute Acids, Fuels, Greases, Hot Water, Ozone, Petroleum Oils, Steam, UV |
| Poor Resistance To | Aromatic Hydrocarbons, Concentrated Acids, Ketones (Acetone) |
¶ What's Included
| Qty | Name |
|---|---|
| 1x | Open Timing Belt - GT - 3MR - Neoprene - 12mm - 1mm |
¶ Additional Notes
There are no additional notes.
