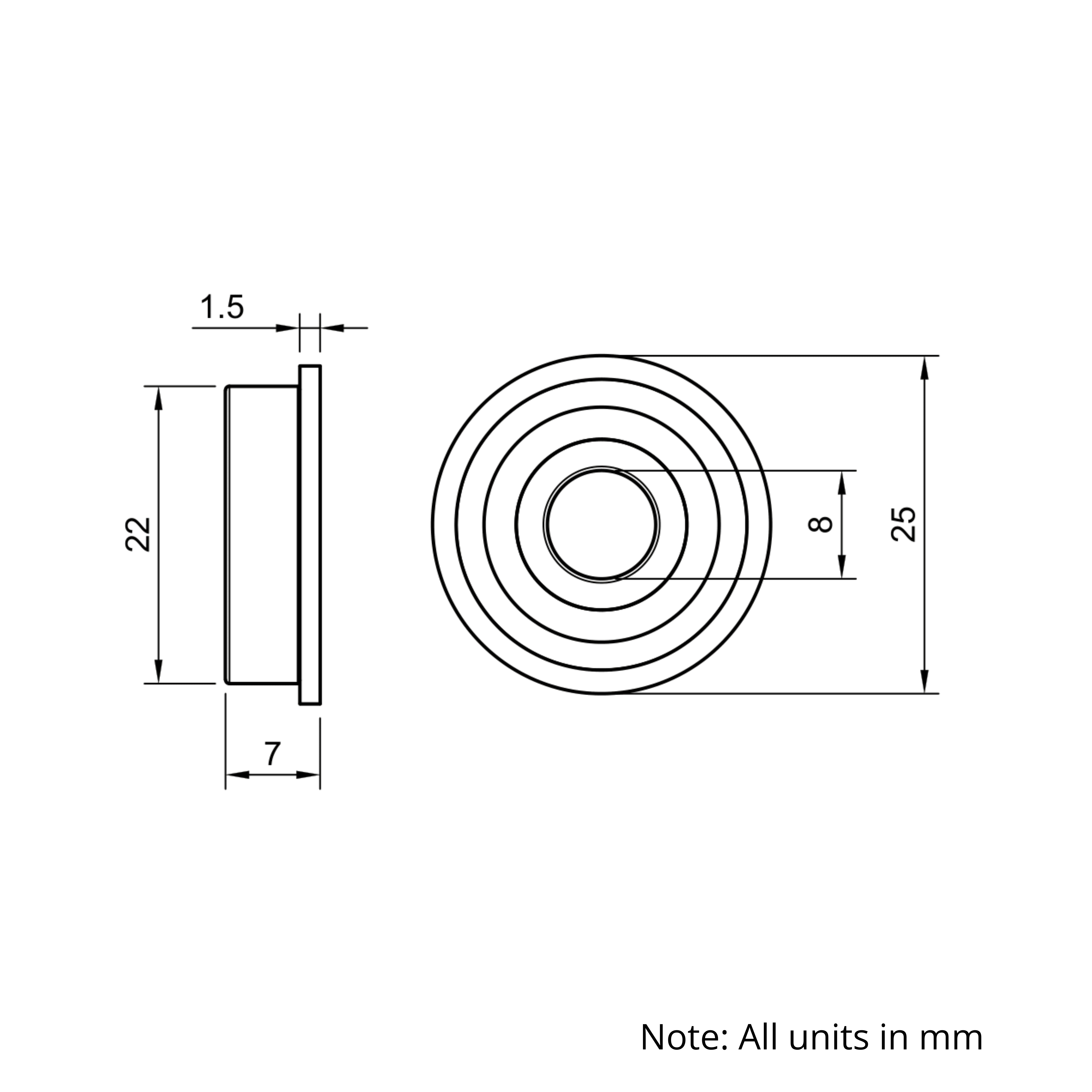

¶ CAD Files
¶ Specifications
| Attribute | Value |
|---|---|
| SKU | RFB-F608-2RS |
| Brand | Ooznest |
| Stock Type | New |
| Weight (g) | 13.00 |
| Inside Diameter (mm) | 8 |
| Outside Diameter (mm) | 22 |
| Thickness (mm) | 7 |
| Version | Standard |
| Inside Diameter Tolerance (mm) | -0.007 - 0 |
| Outside Diameter Tolerance (mm) | -0.008 - 0 |
| Precision Class | P6 |
| Noise Class | V1 |
| Vibration Class | Z1 |
| Seal Specification | Double Rubber Seal |
| Maximum RPM Grease | 34000 |
| Maximum RPM Oil | 41000 |
| Radial Clearance (mm) | 0.002 - 0.013 |
| Static Radial Load Rating (N) | 1103.16 |
| Dynamic Radial Load Rating (N) | 2802.38 |
| Maximum Temperature (°C) | 110 |
¶ What's Included
| Qty | Name |
|---|---|
| 1x | 8x22x7mm Flanged Radial Bearing (F608-2RS) |
¶ Additional Notes
There are no additional notes.
