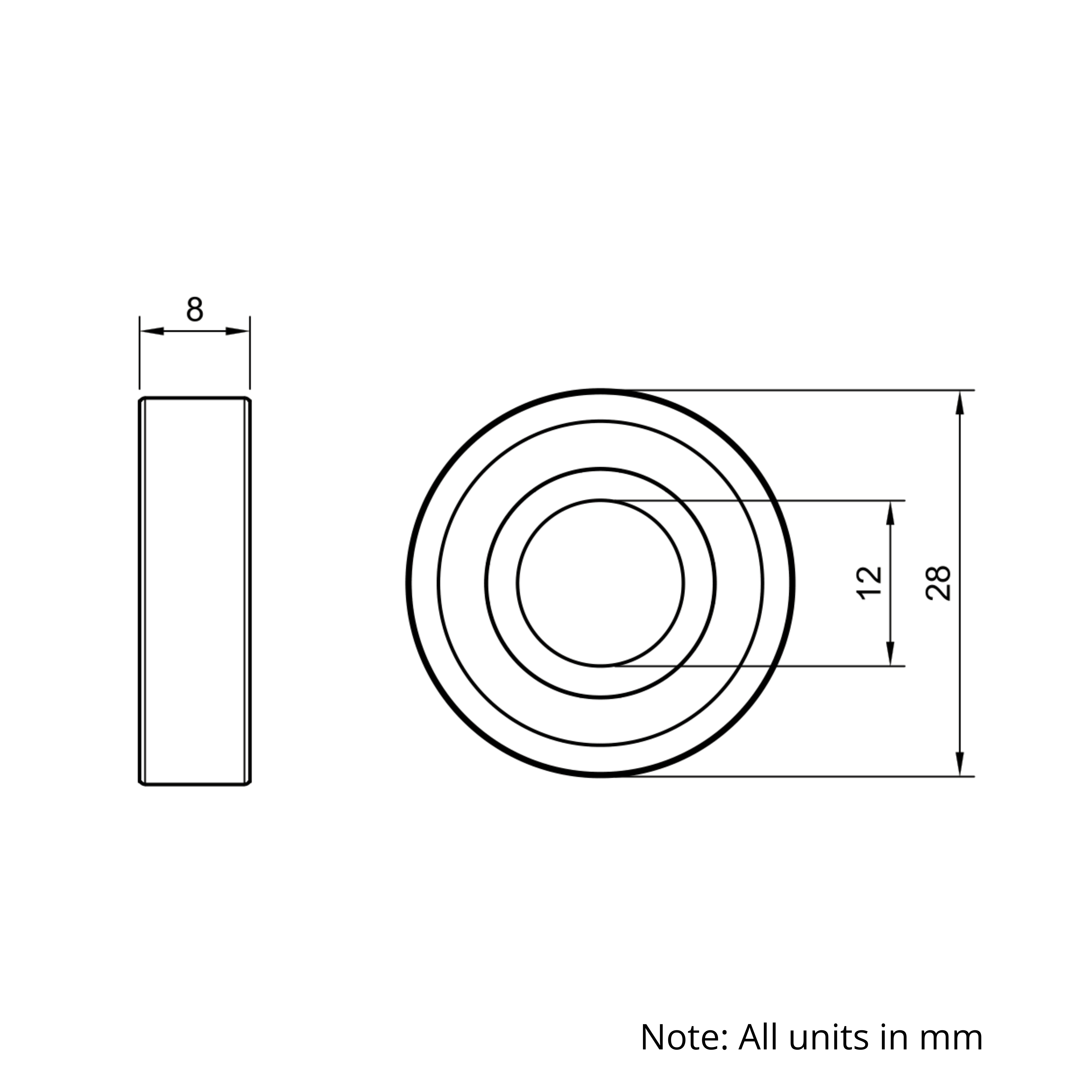

¶ CAD Files
¶ Specifications
| Attribute | Value |
|---|---|
| SKU | RB-6001-2RS |
| Brand | Ooznest |
| Stock Type | New |
| Weight (g) | 22.00 |
| Inside Diameter (mm) | 12 |
| Outside Diameter (mm) | 28 |
| Thickness (mm) | 8 |
| Version | Standard |
| Inside Diameter Tolerance (mm) | -0.007 - 0 |
| Outside Diameter Tolerance (mm) | -0.008 - 0 |
| Precision Class | P6 |
| Noise Class | V1 |
| Vibration Class | Z1 |
| Seal Specification | Double Rubber Seal |
| Maximum RPM Grease | 23000 |
| Maximum RPM Oil | 28000 |
| Radial Clearance (mm) | 0.002 - 0.013 |
| Static Radial Load Rating (N) | 240.20 |
| Dynamic Radial Load Rating (N) | 5102.11 |
| Maximum Temperature (°C) | 110 |
¶ What's Included
| Qty | Name |
|---|---|
| 1x | 12x28x8mm Radial Bearing (6001-2RS) |
¶ Additional Notes
There are no additional notes.
