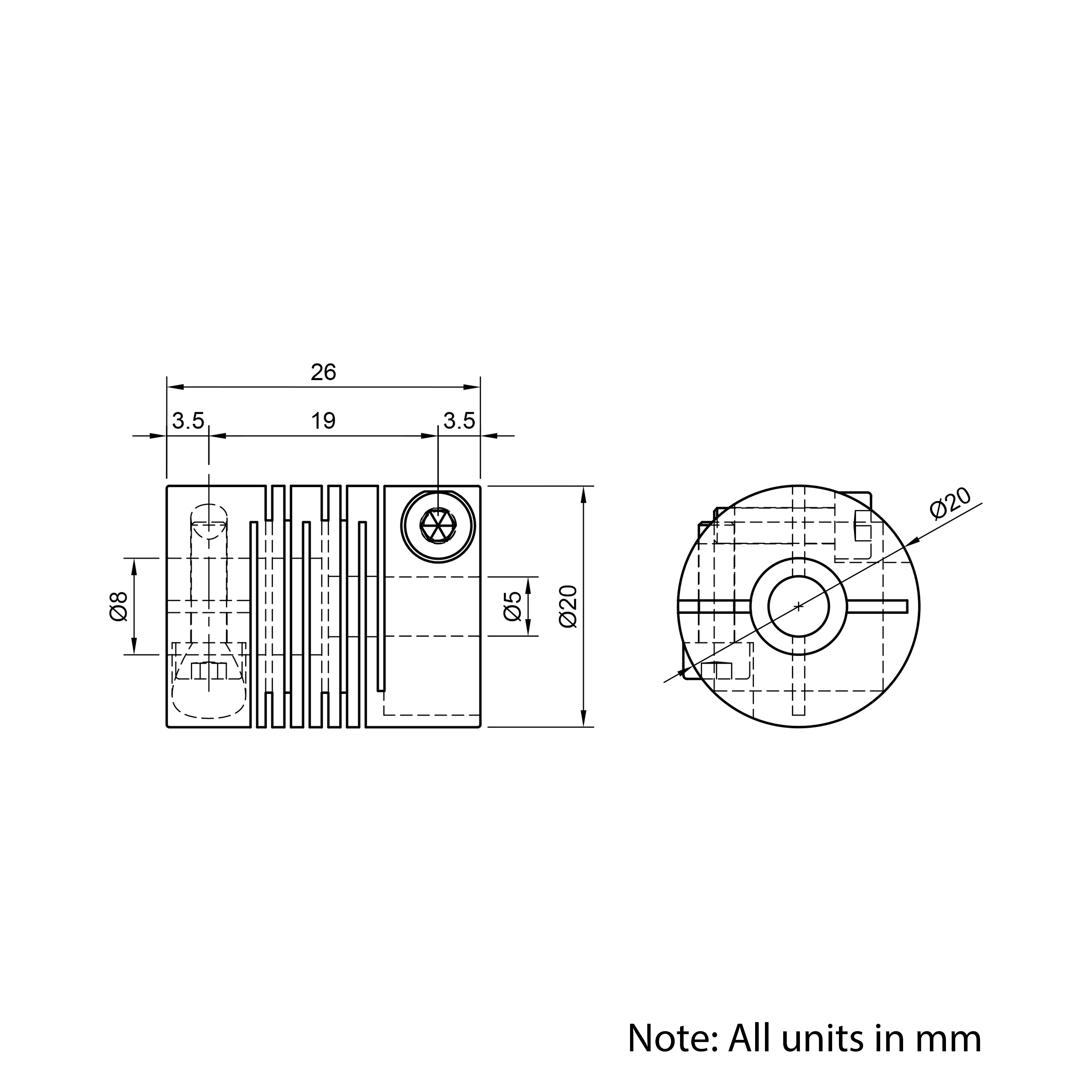

¶ CAD Files
¶ Specifications
| Attribute | Value |
|---|---|
| SKU | SBFSC-5-8 |
| Brand | Ooznest |
| Stock Type | New |
| Weight (g) | 14.00 |
| Material | Aluminium |
| Surface Finish | Anodised |
| Colour | Silver |
| Inside Diameter (mm) | 5/8 |
| Outside Diameter (mm) | 20 |
| Length (mm) | 26 |
| Version | 5x8mm |
| Torque Rating (Nm) | 1.2 |
| Moment of Inertia (Kgm2) | 9.1×10-6 |
| Torsional Stiffness (Nm/rad) | 170 |
| Max Axial Movement (mm) | ±0.2 |
| Max Angular Misalignment (°) | 2 |
| Max Radial Misalignment (mm) | 0.15 |
| Maximum RPM | 7600 |
¶ What's Included
| Qty | Name |
|---|---|
| 1x | 5x8mm Slit Beam Flexible Shaft Coupling |
¶ Notes
- Includes 2 x M3x10mm Socket Cap Head Bolt
