¶ Assembly

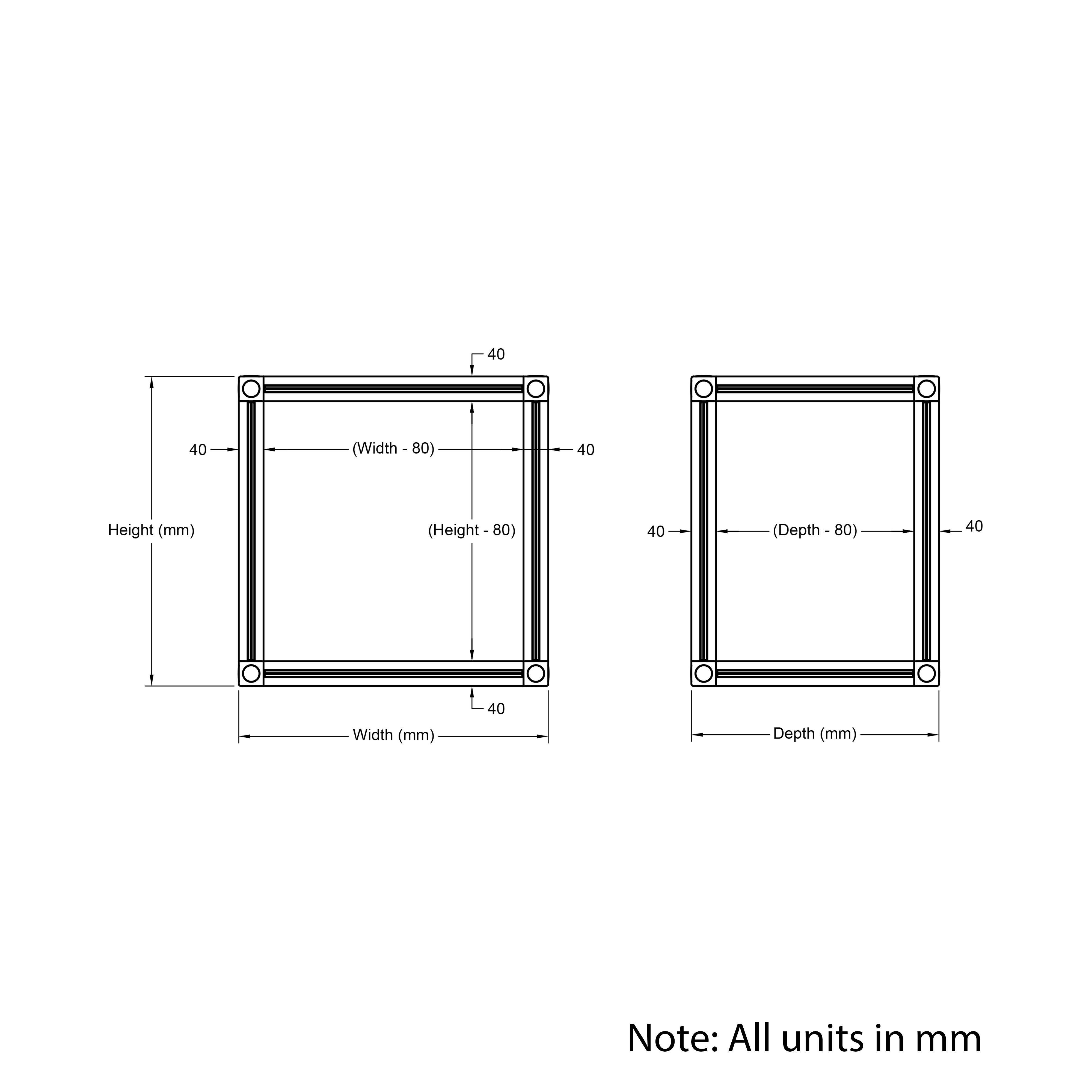

¶ CAD Files
¶ Specifications
| Attribute | Value |
|---|---|
| SKU | CUF-40-505050-S |
| Brand | Ooznest |
| Stock Type | New |
| Weight (g) | 3357.96 |
| Profile Series | 40 Series |
| Profile | 40x40 |
| Colour | Silver |
| Slot Width (mm) | 10 |
| Slot Depth (mm) | 12.5 |
| Width (mm) | 500 |
| Depth (mm) | 500 |
| Height (mm) | 500 |
| Minimum Panel Thickness (mm) | 3 |
| Maximum Panel Thickness (mm) | 6 |
| Load Rating (Kg) | 125.00 |
| Frame Size (W x D x H) (mm) | 500x500x500 |
¶ What's Included
| Qty | Name |
|---|---|
| 1x | 500x500x500mm 40 Series T-Slot Aluminium Cuboid Frame |
¶ Additional Notes
There are no additional notes.
