¶ Related Resources

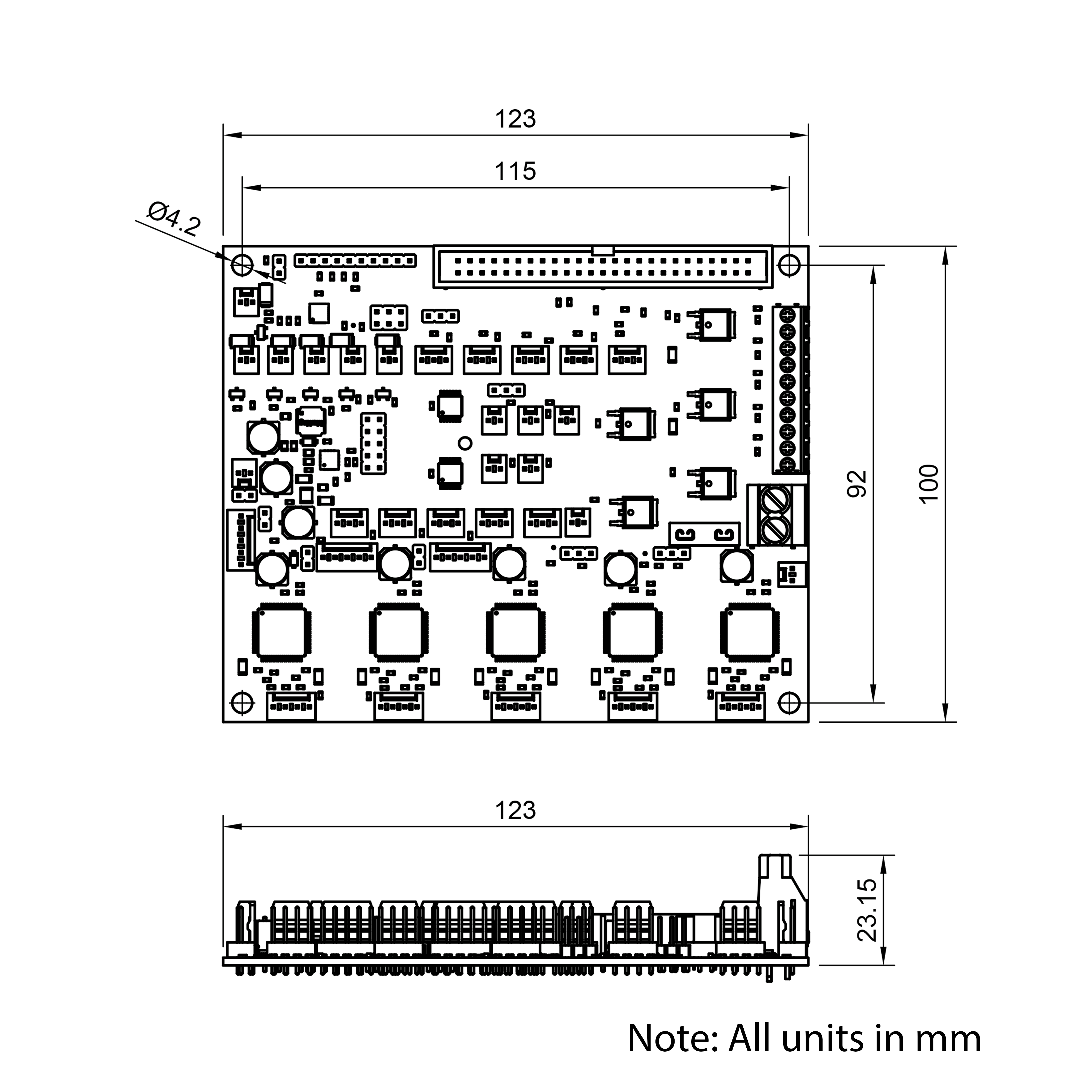

¶ CAD Files
¶ Specifications
| Attribute | Value |
|---|---|
| SKU | DUEX5 |
| Brand | Duet3D |
| Stock Type | New |
| Weight (g) | 200.00 |
| Voltage Rating (V) | 11 - 25 |
| Duet Family | 2 |
| Firmware | RepRapFirmware 1.16+ |
| Stepper Driver Outputs | 5 |
| Stepper Driver Model | TMC2660 |
| Stepper Driver Rating (A) | 2.4 Peak (1.7 RMS) |
| High Current Outputs | 5 x 6A PWM |
| Medium Current Outputs | 6 x PWM |
| Temperature Inputs | 2 x Daughter Boards, 5 x Thermistor / 5 x PT1000 |
| Inputs/Outputs | 5 x Input / Output |
| Maximum Temperature (°C) | 70 |
¶ What's Included
| Qty | Name |
|---|---|

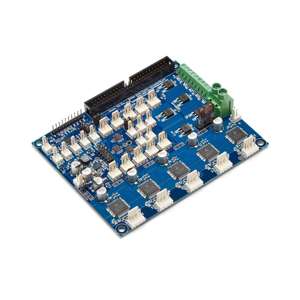

| 1x | Duet 2 Duex5 Expansion Board |
¶ Notes
- Includes applicable connector pack
¶ Additional Notes
There are no additional notes.
