| Attribute | Value |
|---|
| SKU | DUET-3-E-1HCL |
| Brand | Duet3D |
| Stock Type | New |
| Weight (g) | 81.00 |
| Voltage Rating (V) | 24 - 50 |
| Duet Family | 3 |
| Processor | Atmel ATSAME51G19A (ARM Cortex M4F) |
| Firmware | RepRapFirmware 3.4+ |
| Stepper Driver Outputs | 1 |
| Stepper Driver Model | TMC2160a |
| Stepper Driver Rating (A) | 6.3 Peak (4.45 RMS) |
| Medium Current Outputs | 1 x 2.5A PWM |
| Temperature Inputs | 2 x Thermistor / 2 x PT1000 |
| Inputs/Outputs | 2 x Input, 2 x PWM Output |
| Maximum Temperature (°C) | 70 |
| Qty | Name |
|---|

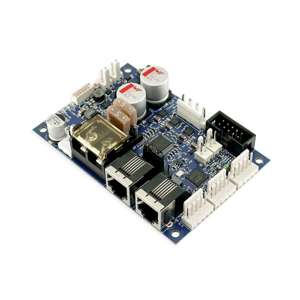

| 1x | Duet 3 Expansion Board 1HCL |
- Includes applicable connector pack
| Product Range | Information | Products |
|---|
| Magnetic Encoder | Add a Duet 3 Magnetic Encoder to sense motor position and rotation using a Hall effect sensor to detect a diametrically-magnetised disc magnet mounted on the rear shaft of a NEMA17 stepper motor. | |
There are no additional notes.
