¶ Related Resources

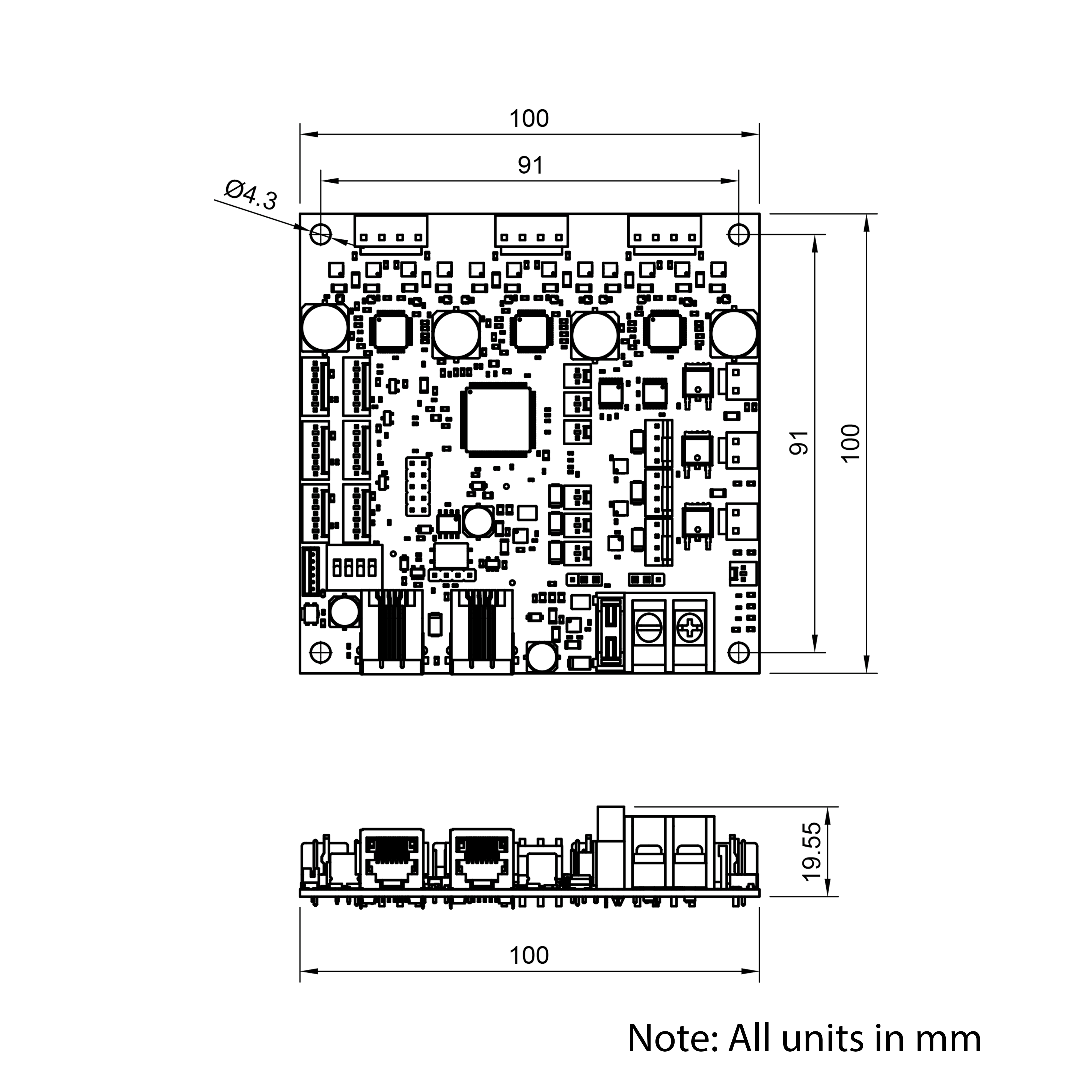

¶ CAD Files
¶ Specifications
| Attribute | Value |
|---|---|
| SKU | DUET-3-E-3HC |
| Brand | Duet3D |
| Stock Type | New |
| Weight (g) | 169.00 |
| Voltage Rating (V) | 12 - 48 |
| Duet Family | 3 |
| Processor | Atmel ATSAME51N (ARM Cortex M4F) |
| Firmware | RepRapFirmware 3.0+ |
| Stepper Driver Outputs | 3 |
| Stepper Driver Model | TMC2160 |
| Stepper Driver Rating (A) | 6.3 Peak (4.45 RMS) |
| High Current Outputs | 3 x 6A PWM |
| Medium Current Outputs | 6 x PWM |
| Temperature Inputs | 2 x Daughter Board, 3 x Thermistor / 3 x PT1000 |
| Inputs/Outputs | 6 x Input / Output |
| Maximum Temperature (°C) | 70 |
¶ What's Included
| Qty | Name |
|---|---|

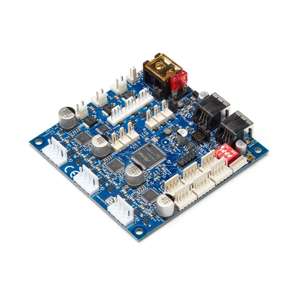

| 1x | Duet 3 Expansion Board 3HC |
¶ Notes
- Includes applicable connector pack
¶ Additional Notes
There are no additional notes.
