| Attribute | Value |
|---|
| SKU | DUET-3 |
| Brand | Duet3D |
| Stock Type | New |
| Weight (g) | 336.00 |
| Voltage Rating (V) | 12 - 48 |
| Duet Family | 3 |
| Processor | Atmel ATSAME70 (ARM Cortex M7) |
| Firmware | RepRapFirmware 3.0+ |
| Connectivity | Ethernet (Integrated), Single Board Computer (via SPI Bus), Wifi (via Wifi Module) |
| Stepper Driver Outputs | 6 |
| Stepper Driver Model | TMC2160a |
| Stepper Driver Rating (A) | 6.3 Peak (4.45 RMS) |
| High Current Outputs | 1 x 15A PWM, 3 x 6A PWM |
| Medium Current Outputs | 6 x PWM |
| Temperature Inputs | 4 x Thermistor / 4 x PT1000 / 2 x Daughter Board |
| Inputs/Outputs | 1 x Output, 9 x Input /Output |
| Maximum Temperature (°C) | 70 |
| Qty | Name |
|---|

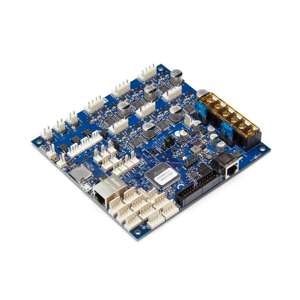

| 1x | Duet 3 Mainboard 6HC |
- Includes applicable connector pack
| Product Range | Information | Products |
|---|

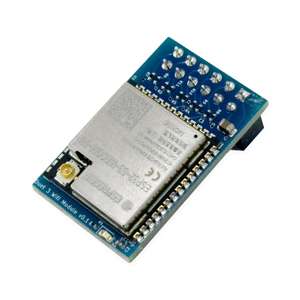

| Wifi Module | The Duet 3 Mainboard 6HC supports Ethernet by default. Add the WiFi module to enable wireless networking capability | |
There are no additional notes.
