Order Online: www.ooznest.co.uk
¶ Related Resources

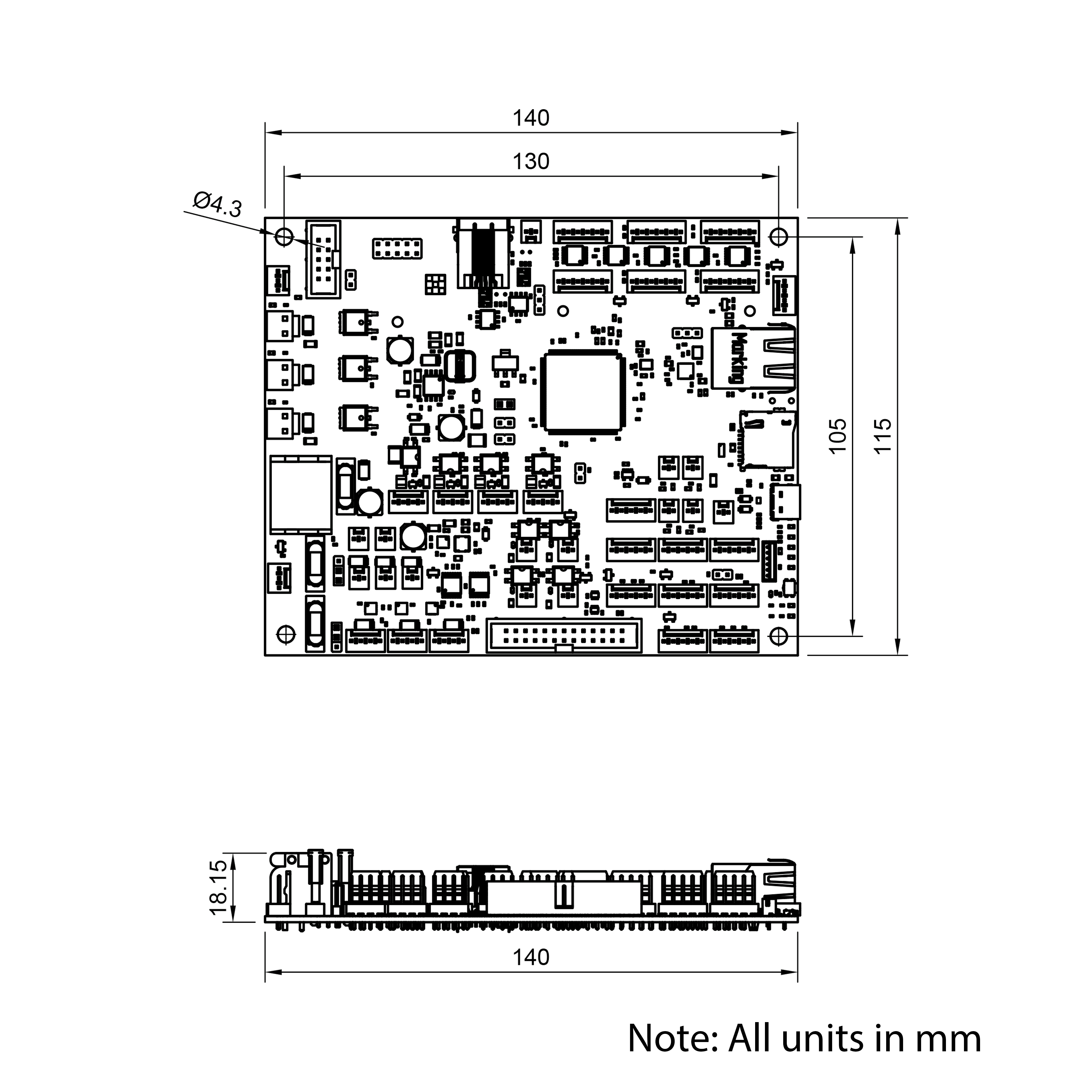

¶ CAD Files
¶ Specifications
| Attribute | Value |
|---|---|
| SKU | DUET-3-6XD |
| Brand | Duet3D |
| Stock Type | New |
| Weight (g) | 299.00 |
| Voltage Rating (V) | 11 - 30 |
| Duet Family | 3 |
| Processor | Atmel ATSAME70 (ARM Cortex M7) |
| Firmware | RepRapFirmware 3.4+ |
| Connectivity | Ethernet (Integrated), Single Board Computer (via SPI Bus) |
| Stepper Driver Outputs | 6 (External) |
| High Current Outputs | 3 x 6A PWM |
| Medium Current Outputs | 6 x PWM |
| Temperature Inputs | 4 x Thermistor / 4 x PT1000 / 2 x Daughter Board |
| Inputs/Outputs | 9 x Input /Output |
| Maximum Temperature (°C) | 70 |
¶ What's Included
| Qty | Name |
|---|---|

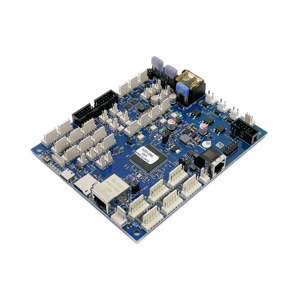

| 1x | Duet 3 Mainboard 6XD |
¶ Notes
- Includes applicable connector pack
¶ Additional Notes
There are no additional notes.
