¶ Related Resources

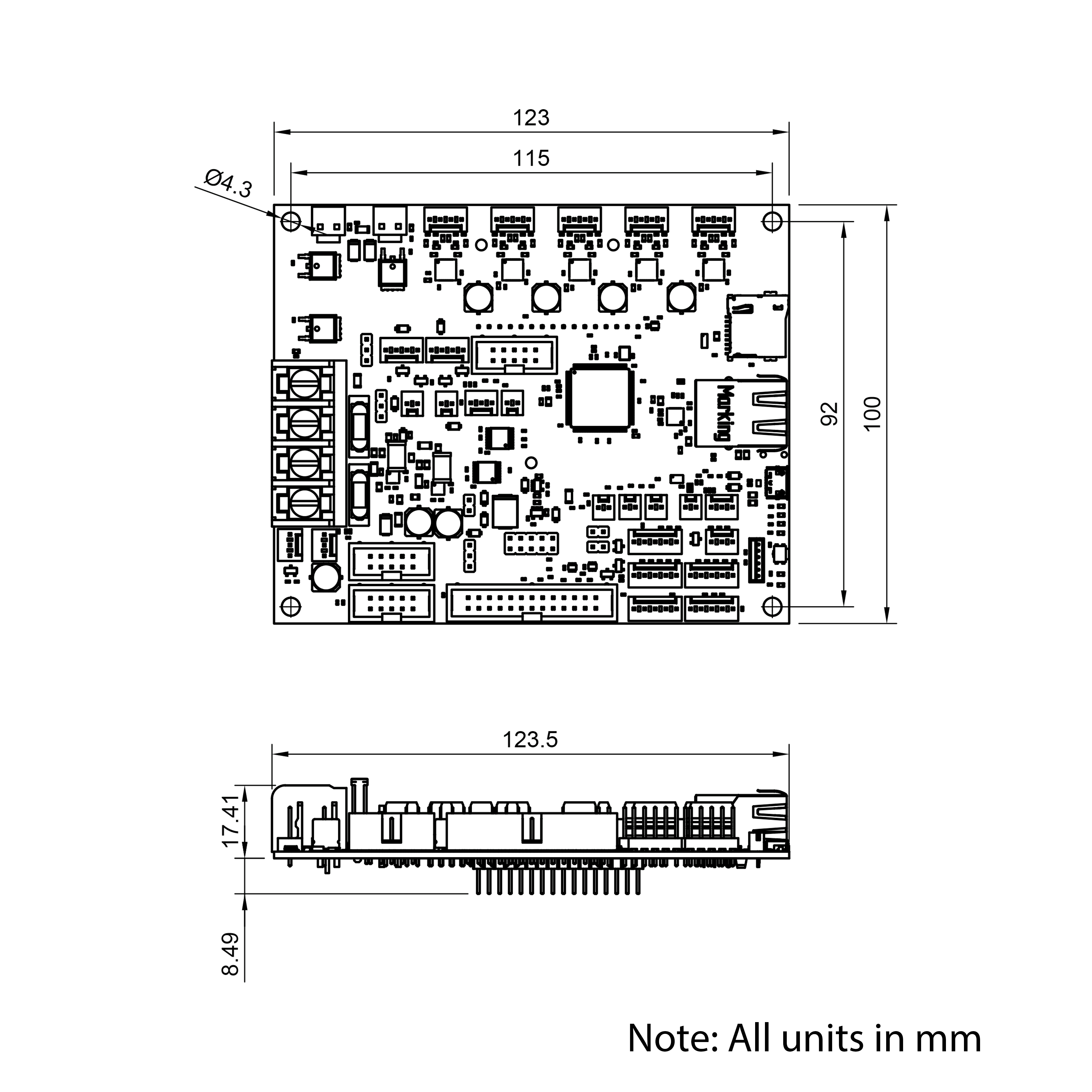

¶ CAD Files
¶ Specifications
| Attribute | Value |
|---|---|
| SKU | DUET-3-M5-E |
| Brand | Duet3D |
| Stock Type | New |
| Weight (g) | 238.00 |
| Version | Ethernet |
| Voltage Rating (V) | 11 - 25 |
| Duet Family | 3 |
| Processor | Atmel ATSAME54P20A (ARM Cortex M4F) |
| Firmware | RepRapFirmware 3.0+ |
| Connectivity | Ethernet (Integrated), Single Board Computer (via SPI Bus) |
| Stepper Driver Outputs | 5 |
| Stepper Driver Model | TMC2209 |
| Stepper Driver Rating (A) | 2 Peak (1.4 RMS) |
| High Current Outputs | 1 x 15A PWM, 2 x 5A PWM |
| Medium Current Outputs | 4 x PWM |
| Temperature Inputs | 3 x Thermistor / 3 x PT1000 / 2 x Daughter Board |
| Inputs/Outputs | 1 x Output, 2 x Input, 5 x Input / Output |
| Maximum Temperature (°C) | 70 |
¶ What's Included
| Qty | Name |
|---|---|

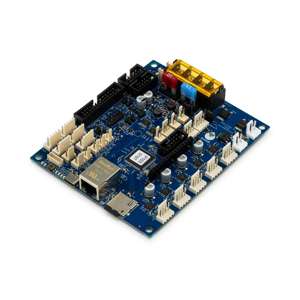

| 1x | Ethernet Duet 3 Mini Mainboard 5+ |
¶ Notes
- Includes applicable connector pack
¶ Additional Notes
There are no additional notes.
