¶ Related Resources
¶ Specifications
| Attribute | Value |
|---|---|
| SKU | USTEP-S32 |
| Brand | uStepper |
| Stock Type | New |
| Weight (g) | 41.10 |
| Voltage Rating (V) | 8 - 42 |
| Frame Size | NEMA17 |
| For Stepper Motor Type | NEMA17 |
| Processor | STM32F401 (ARM Cortex M4) |
| Connectivity | USB-C, Wifi (via Wifi Shield) |
| Stepper Driver Outputs | 1 |
| Stepper Driver Model | TMC5130 |
| Stepper Driver Rating (A) | 2.5 Peak (1.75 RMS) |
| Inputs/Outputs | 22 x Input / Output |
¶ What's Included
| Qty | Name |
|---|---|

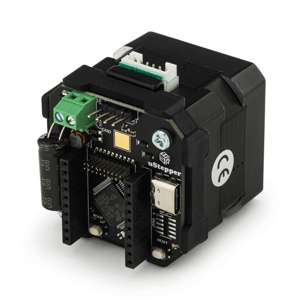

| 1x | uStepper S32 Controller |
| 1x | uStepper S32 Dual Mount |
¶ Notes
- Includes Heat Sink and Encoder Magnet
¶ Related Products
| Product Range | Information | Products |
|---|---|---|

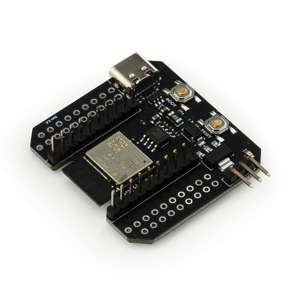

| Wifi Shield | Add the WiFi shield to enable wireless networking capability with a graphical user interface that allows direct control of a single axis. | |
| Power | Add the DC Power Supply Adapter to provide power for the uStepper S32 and the stepper motor. Add the DC Socket Adapter to interface the power supply with the terminal inputs of the uStepper S32 controller. | |
| NEMA23 Mount | Add the NEMA23 Mount to securely attach the uStepper to the back of a NEMA23 stepper motor. |
¶ Additional Notes
There are no additional notes.
