¶ Assembly

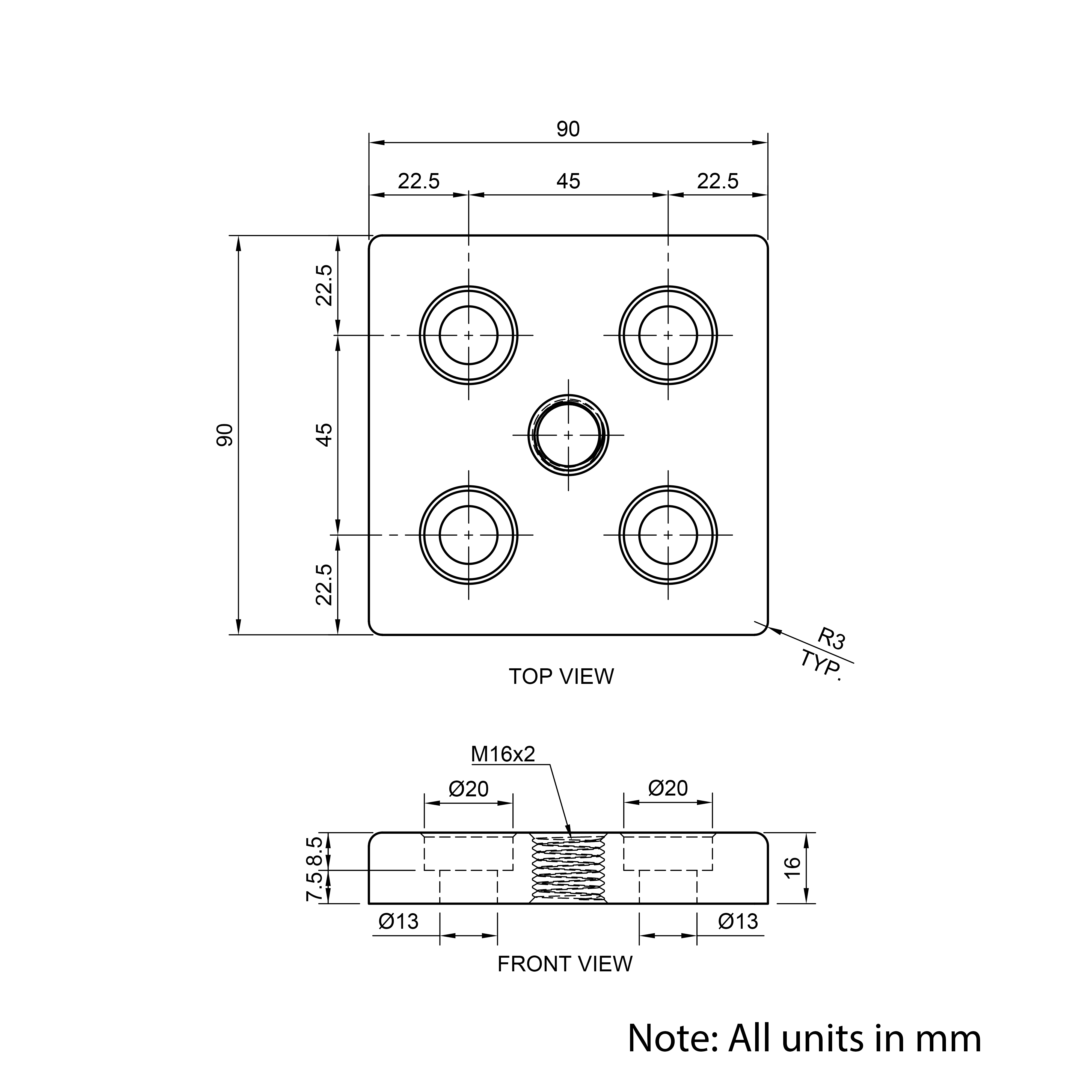

¶ CAD Files
¶ Specifications
| Attribute | Value |
|---|---|
| SKU | FP-45-9090-M16 |
| Brand | Ooznest |
| Stock Type | New |
| Weight (g) | 299.70 |
| Profile Series | 45 Series |
| Profile | 90x90 |
| Material | Die Cast Aluminium |
| Surface Finish | Painted |
| Colour | Silver |
| Thread | M16 |
| Thread Pitch (mm) | 2 |
| Number Of Fixing Points | 4 |
¶ What's Included
| Qty | Name |
|---|---|
| 1x | M16 90x90 45 Series Foot Plate |
¶ Related Products
| Product Range | Information | Products |
|---|---|---|
| Fasteners | Add M12×30mm Low Cap Head Bolts to use the Foot Plate with 90x90mm 45 Series T-Slot Aluminium Extrusions. Please note that the end of the extrusion must be M12 Tapped, this is available as a customisation service on the extrusion product pages. | |
| Levelling Feet | Add levelling feet to attach to the foot plate. | - |
¶ Additional Notes
There are no additional notes.
