¶ Assembly

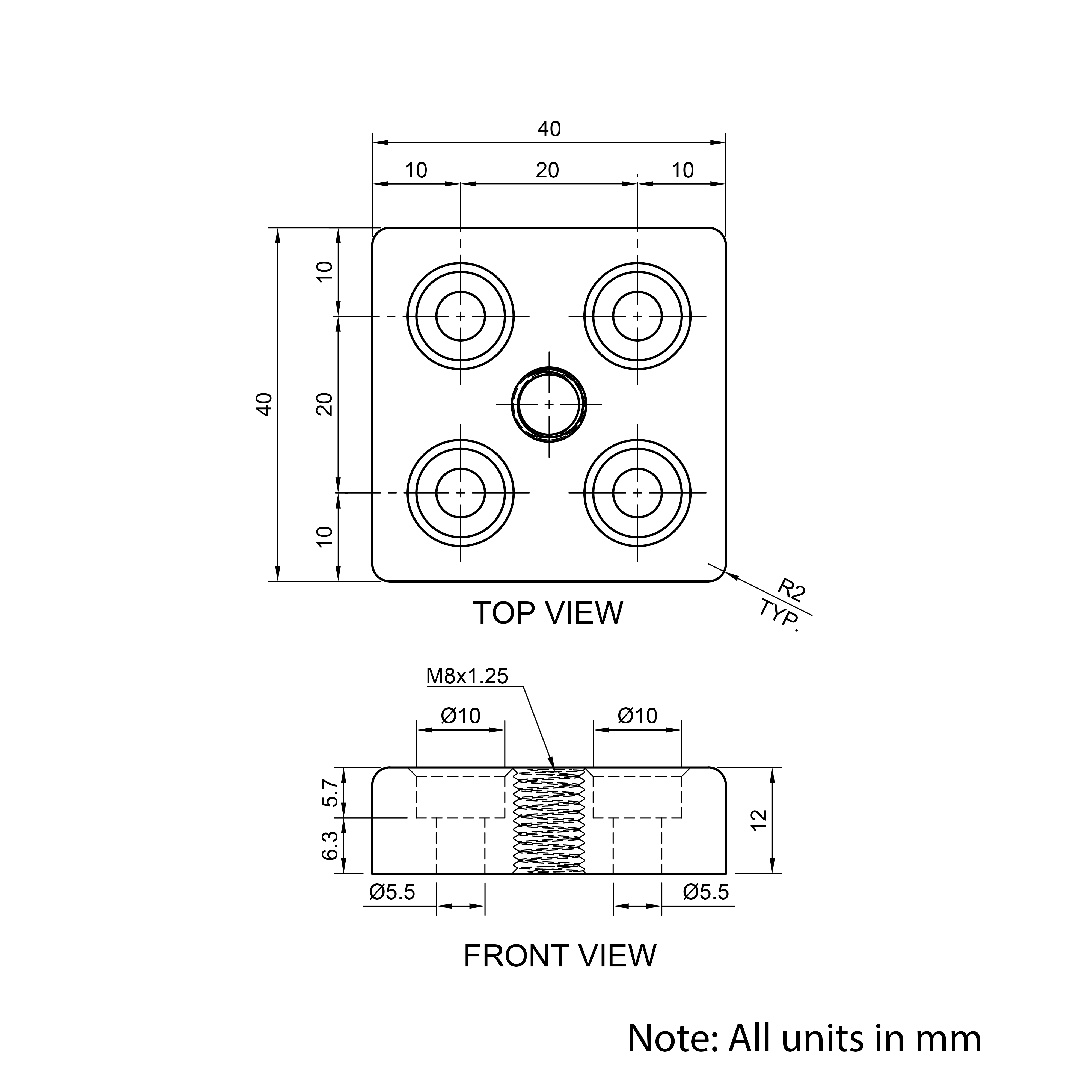

¶ CAD Files
¶ Specifications
| Attribute | Value |
|---|---|
| SKU | FP-20-4040-M8 |
| Brand | Ooznest |
| Stock Type | New |
| Weight (g) | 43.33 |
| Profile Series | 20 Series |
| Profile | 40x40 |
| Material | 6063 T-5 Aluminium |
| Surface Finish | Painted |
| Colour | Silver |
| Thread | M8 |
| Thread Pitch (mm) | 1.25 |
| Number Of Fixing Points | 4 |
¶ What's Included
| Qty | Name |
|---|---|
| 1x | M8 40x40 20 Series Foot Plate |
¶ Related Products
| Product Range | Information | Products |
|---|---|---|
| Fasteners | Add M5×16mm Cap Head Bolts to use the Foot Plate with 40x40mm 20 Series T/V-Slot Aluminium Extrusions. Please note that the end of the extrusion must be M5 Tapped, this is available as a customisation service on the extrusion product pages. | |
| Levelling Feet | Add levelling feet to attach to the foot plate. |
¶ Additional Notes
There are no additional notes.
