¶ Related Resources
¶ CAD Files
¶ Specifications
| Attribute | Value |
|---|---|
| SKU | HGLS-12-CTS |
| Brand | Ooznest |
| Stock Type | New |
| Weight (g) | 0.89 |
| Linear Shaft Type | Solid |
| Material | CF53 Steel |
| Tensile Strength (N/mm2) | 610 |

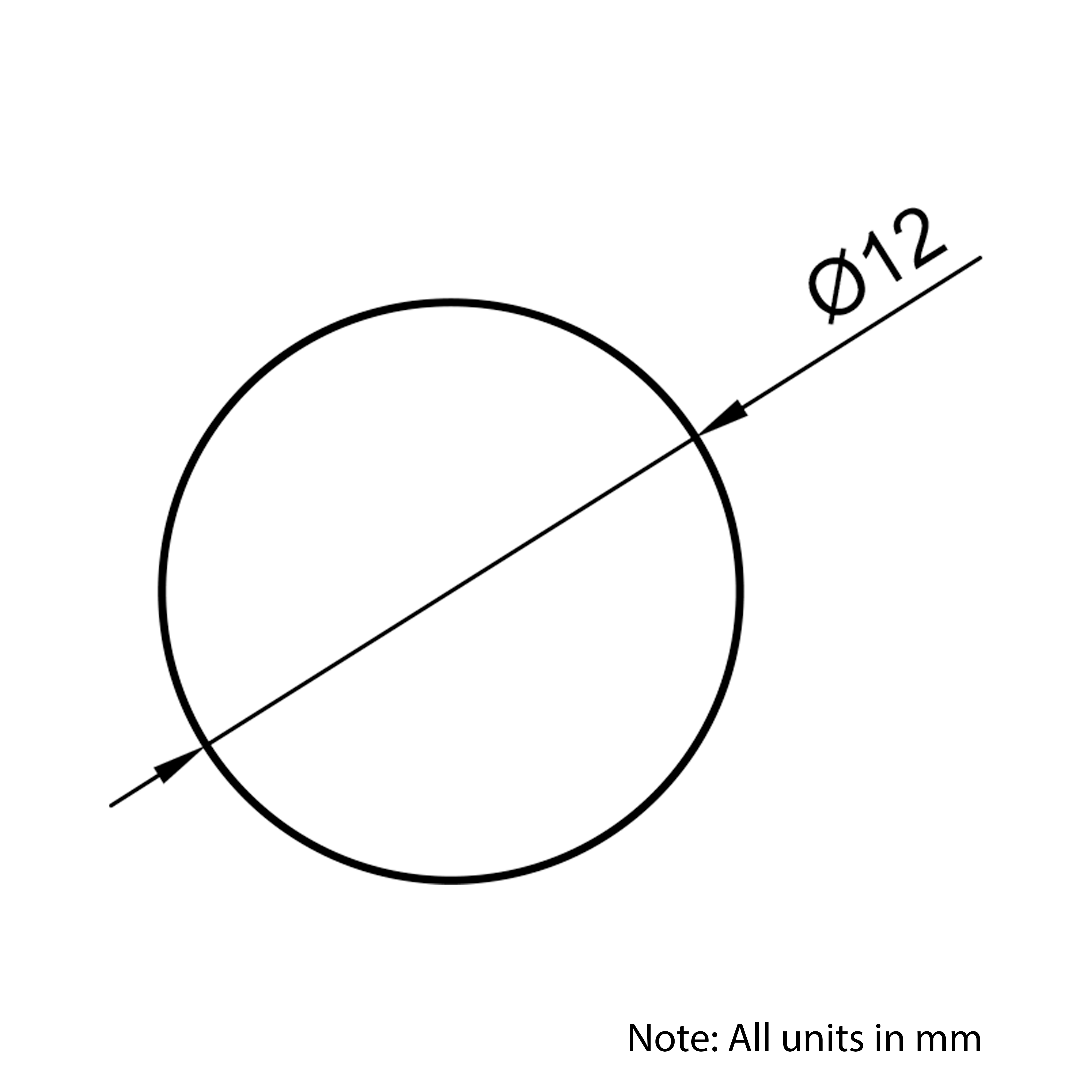

| Outside Diameter (mm) | 12 |
| Diameter Tolerance (mm) | h7 +0.000, -0.011 |
| Roundness (mm) | +/- 0.005 |
| Straightness (mm) | +/- 0.1 |
| Minimum Length (mm) | 100 |
| Maximum Length (mm) | 3000 |
| Length Tolerance (mm) | +/- 0.5 |
| Induction Layer Thickness (mm) | 0.6 |
| Induction Layer Hardness (HRC) | 59 |
| X Moment Of Inertia - (m4) | 101.788 x10-11 |
| Y Moment Of Inertia - (m4) | 101.788 x10-11 |
¶ What's Included
| Qty | Name |
|---|---|
| 1x | Hardened Ground Linear Shaft - Solid - 12mm - 1mm |
¶ Related Products
| Product Range | Information | Products |
|---|---|---|
| Linear Bearings | Add Linear Bearings to slide on the linear shaft. |
¶ Additional Notes
There are no additional notes.
