¶ Related Resources
- Actuator Speed & Load Calculator
- V-Slot Gantry Plate - Large - 127x88mm - 3D Model Download

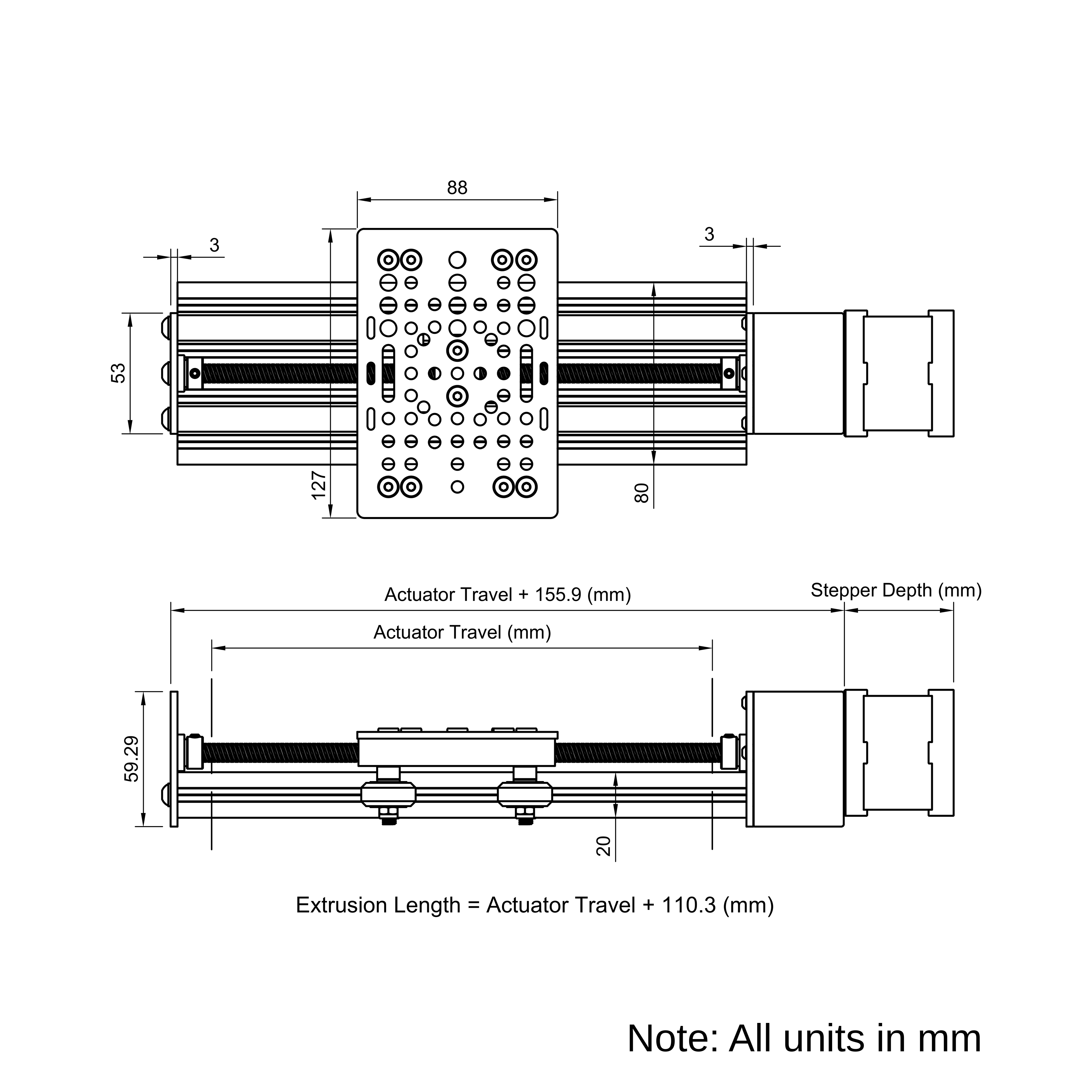

- V-Slot Gantry Plate - Large - 127x88mm - Drawing Download
- EHSR00002 - Screw Drive Linear Actuators Download
¶ Assembly
¶ CAD Files
¶ Specifications
| Attribute | Value |
|---|---|
| SKU | SDA-NEMA17-2080-500-B-L |
| Brand | Ooznest |
| Stock Type | New |
| Weight (g) | 1451.69 |
| Precision (mm) | +/- 0.1 |
| Resolution (mm) | 0.0025 |
| Profile Series | 20 Series |
| Profile | 20x80 |
| Colour | Black |
| X Moment Of Inertia - (m4) | 33.57 x10-8 |
| Y Moment Of Inertia - (m4) | 2.295 x10-8 |
| For Stepper Motor Type | NEMA17 |
| Lead (mm) | 8 |
| Number Of Starts | 4 |
| Transmission Type | Lead Screw Drive |
| Maximum Travel (mm) | 389 |
| Travel Per Revolution (mm) | 8 |
| Gantry Plate | Large V-Slot Gantry Plate (127x88mm) |
| Lead Screw Diameter (mm) | 8 |
| Overall Length (mm) | 545.6 |
| Extrusion Length (mm) | 500 |
¶ What's Included
| Qty | Name |
|---|---|

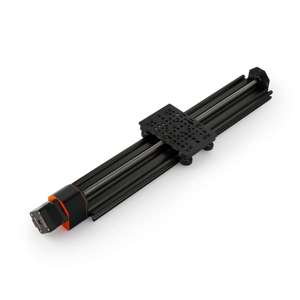

| 1x | Large Gantry NEMA17 Screw Drive Actuator (Black 20x80mm, 389mm Travel) |
¶ Notes
- Stepper motor not included. Please add a stepper motor separately.
- The actuator will be customised to your specified travel if custom sizing is selected.
¶ Related Products
| Product Range | Information | Products |
|---|---|---|
| Stepper Motor | Add a Stepper Motor to drive the actuator. Choose a motor with the torque and positioning resolution required for your application, and check its current rating against your chosen controller. | |
| Controller | Add the uStepper S32 Controller to control the actuator’s stepper motor. Add the Wifi Shield to enable wireless connectivity with a graphical interface for direct control of a single axis. Add the Power Supply Adaptor to provide power for the uStepper S32 and the stepper motor. Add the DC Socket Adaptor to connect the power supply to the terminal inputs of the uStepper S32 Controller. The uStepper S32 is rated at 2.5A peak / 1.75A RMS. Motors with higher current ratings may not achieve their rated torque when used with this controller. |
¶ Additional Notes
There are no additional notes.
